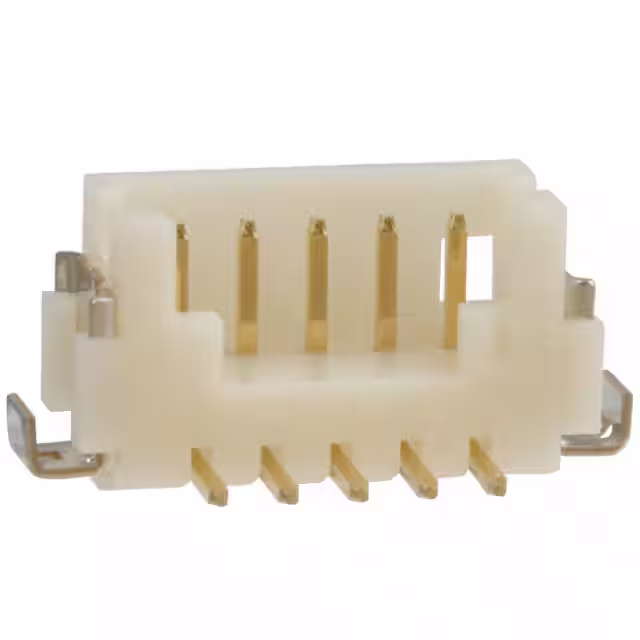

DF13B-5P-1.25V(76)
Or copy the link below:
- Mfr.Part #
- DF13B-5P-1.25V(76)
- Manufacturer
- Hirose
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 5POS 1.25MM
- Stock
- 4,604
- In Stock ：
- 4,604
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Hirose
- Product Category :
- Headers, Male Pins
- Factory Lead Time :
- 10 Weeks
- Style :
- Board to Cable/Wire
- Contact Finish Thickness - Post :
- 8.00μin 0.203μm
- Number of Rows :
- 1
- Fastening Type :
- Detent Lock
- IEC Conformance :
- No
- Number of Positions Loaded :
- All
- DIN Conformance :
- No
- Operating Temperature :
- -35°C~85°C
- Number of Positions :
- 5
- Contact Shape :
- Square
- Contact Finish Thickness - Mating :
- 8.00μin 0.203μm
- Insulation Height :
- 0.189 4.80mm
- Option :
- GENERAL PURPOSE
- Total Number of Contacts :
- 5
- Contact Finish - Mating :
- Gold
- MIL Conformance :
- No
- Termination :
- Solder
- Packaging :
- Tube
- Voltage - Rated :
- 150V
- Contact Type :
- Male Pin
- Contact Material :
- Brass
- JESD-609 Code :
- e3
- Feature :
- Board Guide, Solder Retention
- Mixed Contacts :
- No
- RoHS Status :
- RoHS Compliant
- Shrouding :
- Shrouded - 3 Wall
- UL Flammability Code :
- 94V-0
- Material Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Material :
- Polyamide (PA), Nylon
- Insulation Color :
- Beige
- Connector Type :
- Header
- Filter Feature :
- No
- Current Rating (Amps) :
- 1A
- Series :
- DF13
- Pitch - Mating :
- 0.049 1.25mm
- Mounting Type :
- Surface Mount
- Datasheets
- DF13B-5P-1.25V(76)
DF13 Series 1-Row Header Solder Brass Tube Surface Mount Gold Polyamide (PA), Nylon 5-Position Board to Cable/Wire 0.189 4.80mm Height
DF13B-5P-1.25V(76) Overview
The product is packaged in Header.This device is mounted in the Surface Mount position.It has been determined that a Tube case is necessary to package the product.There is a product in the DF13 Series.There are a number of advantages to its Board Guide, Solder Retention feature.As a result, the device runs at -35°C~85°C Operating Temperature.
DF13B-5P-1.25V(76) Features
DF13 series
DF13B-5P-1.25V(76) Applications
There are a lot of Hirose Electric Co Ltd
DF13B-5P-1.25V(76) Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
