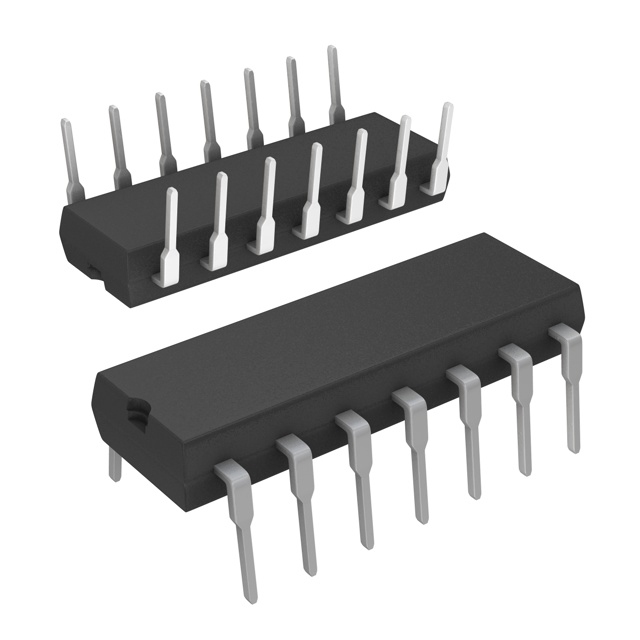

DG200AAK
Or copy the link below:
- Mfr.Part #
- DG200AAK
- Manufacturer
- Vishay
- Package / Case
- CDIP
- Datasheet
- Download
- Description
- IC SWITCH DUAL SPST 14CDIP
- Stock
- 16,488
- In Stock ：
- 16,488
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Vishay
- Product Category :
- Analog Switches, Multiplexers, Demultiplexers
- Switch-on Time-Max :
- 1000ns
- Terminal Pitch :
- 2.54mm
- Packaging :
- Tube
- Normal Position :
- NC
- Operating Temperature (Min) :
- -55°C
- Number of Terminations :
- 14
- ECCN Code :
- EAR99
- Max Dual Supply Voltage :
- 18V
- Max Supply Voltage :
- 25V
- Width :
- 7.62mm
- Output :
- SEPARATE OUTPUT
- Length :
- 19.43mm
- Terminal Form :
- THROUGH-HOLE
- HTS Code :
- 8542.39.00.01
- Min Dual Supply Voltage :
- 4.5V
- Terminal Finish :
- Tin/Lead (Sn/Pb)
- Number of Channels :
- 1
- Peak Reflow Temperature (Cel) :
- 240
- Operating Temperature (Max) :
- 125°C
- Off-state Isolation-Nom :
- 75 dB
- Neg Supply Voltage-Nom (Vsup) :
- -15V
- Temperature Grade :
- Military
- On-State Resistance (Max) :
- 70Ohm
- Time@Peak Reflow Temperature-Max (s) :
- 20
- Terminal Position :
- Dual
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Analog IC - Other Type :
- SPST
- Published :
- 2000
- Supply Voltage :
- 15V
- Radiation Hardening :
- No
- Package / Case :
- CDIP
- Pin Count :
- 14
- Switch-off Time-Max :
- 500ns
- Surface Mount :
- No
- Number of Functions :
- 2
- Height Seated (Max) :
- 5.842mm
- Pbfree Code :
- No
- JESD-609 Code :
- e0
- Switching :
- BREAK-BEFORE-MAKE
- Number of Pins :
- 14
- RoHS Status :
- RoHS Compliant
- Power Supplies :
- +-15V
- Datasheets
- DG200AAK
Analog Switches, Multiplexers, Demultiplexers Vishay DG200AAK Overview
The DG200AAK by Vishay stands out in the realm of Analog Switches, Multiplexers, and Demultiplexers, offering robust functionality and reliability for sophisticated electronic systems. This dual single-pole single-throw (SPST) analog switch is encapsulated in a 14-pin CDIP package, ensuring durable performance across a range of applications. With its precision design, the DG200AAK facilitates efficient signal routing and switching with minimal power loss, making it an ideal choice for high-performance electronic assemblies. Leveraging Vishay's advanced silicon-gate CMOS technology, this component delivers exceptional signal integrity and reduced power consumption, which is crucial for modern electronic devices. The Analog Switches, Multiplexers, Demultiplexers Vishay DG200AAK is designed to meet the rigorous demands of today's technologically advanced environments, ensuring both reliability and excellence.
DG200AAK Features
The DG200AAK features include low power consumption and high-speed switching capabilities, which are essential for both analog and digital applications. Its charge injection is minimized, which significantly reduces signal distortion, making it highly suitable for audio and data signal paths. The device's high electrostatic discharge (ESD) tolerance enhances its robustness in physically demanding scenarios. Moreover, the DG200AAK operates effectively across a broad voltage range, accommodating various power systems and requirements.
DG200AAK Applications
- Communication Equipment: In communication systems, the DG200AAK is used for signal routing, helping to switch between different signal paths efficiently without compromising signal integrity.
- Test and Measurement Systems: The device can be integrated into test equipment, facilitating the precision switching necessary for accurate measurements and diagnostics.
- Data Acquisition Systems: For data acquisition, the DG200AAK ensures reliable switching between different data channels, enhancing the system's ability to capture and process information.
- Audio Equipment: Utilized in audio switchboards and mixers, this IC allows for the smooth transition between audio channels, preserving sound quality while minimizing noise and distortion.
