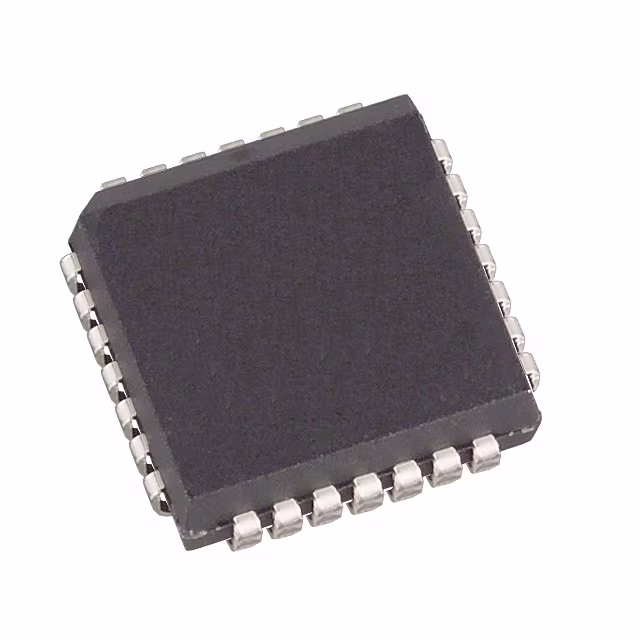

DG506ADN
Or copy the link below:
- Mfr.Part #
- DG506ADN
- Manufacturer
- Analog Devices, Inc.
- Package / Case
- Datasheet
- Download
- Description
- IC MUX ANLG MONO CMOS PLCC
- Stock
- 20,509
- In Stock ：
- 20,509
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Analog Devices, Inc.
- Product Category :
- Analog Switches, Multiplexers, Demultiplexers
- Width :
- 11.505mm
- Terminal Form :
- NO LEAD
- Time@Peak Reflow Temperature-Max (s) :
- 30
- Signal Current-Max :
- 0.02A
- Number of Channels :
- 16
- Analog IC - Other Type :
- SINGLE-ENDED MULTIPLEXER
- Terminal Pitch :
- 1.27mm
- Power Supplies :
- +-15V
- Operating Temperature (Min) :
- -40°C
- Terminal Position :
- QUAD
- Terminal Finish :
- MATTE TIN
- Surface Mount :
- yes
- Factory Lead Time :
- 10 Weeks
- Temperature Grade :
- Industrial
- On-state Resistance Match-Nom :
- 16.2Ohm
- Off-state Isolation-Nom :
- 68 dB
- Pin Count :
- 28
- Qualification Status :
- Not Qualified
- Peak Reflow Temperature (Cel) :
- 245
- RoHS Status :
- RoHS Compliant
- On-State Resistance (Max) :
- 450Ohm
- Operating Temperature (Max) :
- 85°C
- Packaging :
- Tape and Reel (TR)
- JESD-30 Code :
- S-XQCC-N28
- Published :
- 2012
- Length :
- 11.505mm
- Neg Supply Voltage-Max (Vsup) :
- -18V
- Height Seated (Max) :
- 2.54mm
- Neg Supply Voltage-Nom (Vsup) :
- -15V
- Switching :
- BREAK-BEFORE-MAKE
- Number of Functions :
- 1
- Supply Voltage-Min (Vsup) :
- 4.5V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Reach Compliance Code :
- Compliant
- JESD-609 Code :
- e3
- Neg Supply Voltage-Min (Vsup) :
- -4.5V
- Number of Terminations :
- 28
- Pbfree Code :
- yes
- Supply Voltage :
- 15V
- HTS Code :
- 8542.39.00.01
- Supply Voltage-Max (Vsup) :
- 18V
- Datasheets
- DG506ADN
Analog Switches, Multiplexers, Demultiplexers+Analog Devices, Inc.+DG506ADN Overview
Introducing the DG506ADN, a high-performance analog multiplexer from Analog Devices, Inc., specifically designed for precision signal routing in complex electronic systems. This robust IC MUX operates seamlessly within a CMOS architecture, housed in a practical PLCC package, ensuring both durability and ease of integration into various applications. The DG506ADN stands out in the market for its reliability and versatility, making it an ideal choice for businesses looking to enhance their electronic device capabilities. This device exemplifies state-of-the-art technology tailored for efficient analog signal management, promising superior performance in a range of applications.
DG506ADN Features
The DG506ADN analog multiplexer includes several key features that make it an indispensable component for high-demand electronic systems. Its CMOS technology ensures low power consumption while maintaining high-speed operation. The PLCC packaging not only provides robust protection for the internal circuitry but also facilitates easier handling and installation in space-constrained applications. Furthermore, the device's high signal integrity and minimal cross-talk contribute to reliable performance in critical environments.
DG506ADN Applications
- Data Acquisition Systems: The DG506ADN can be used to manage multiple input sources, effectively routing signals to the appropriate data processing units. This application is crucial in settings where precision and efficiency are paramount.
- Test Equipment: In electronic testing environments, the DG506ADN facilitates the routing of signals to different test points without interference, enhancing the equipment's ability to perform accurate and reliable assessments.
- Audio/Video Signal Routing: The flexibility and high fidelity of the DG506ADN make it suitable for audio and video applications, where maintaining signal purity is essential.
- Medical Imaging Equipment: Its precise signal handling capabilities make the DG506ADN a valuable component in medical imaging technologies, where exact signal routing can influence the quality and accuracy of diagnostic images.
