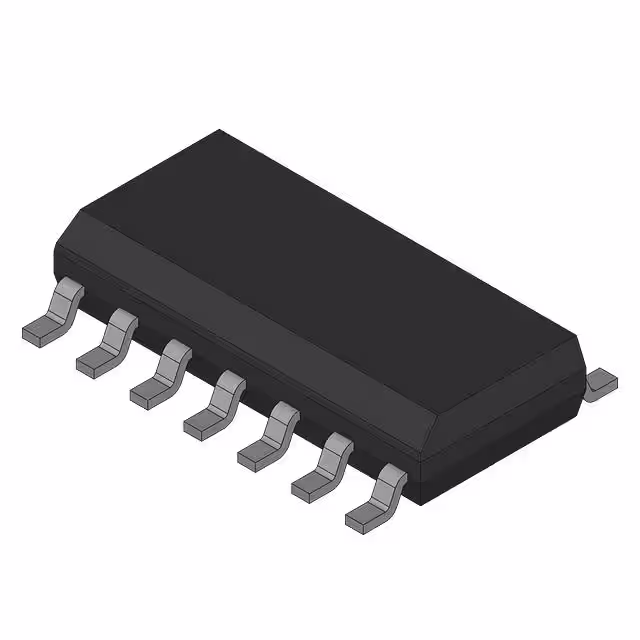

DM74LS08SJ

Manufacturer :

Fairchild Semiconductor

Product Category :

Gates and Inverters

Terminal Pitch :

1.27 mm

Seated Height-Max :

2.1 mm

Width :

5.3 mm

Number of Terminals :

14

Package Shape :

RECTANGULAR

Temperature Grade :

COMMERCIAL

Manufacturer :

Rochester Electronics LLC

Terminal Form :

Gull wing

Length :

10.2 mm

HTS Code :

8542.39.00.01

Surface Mount :

yes

Supply Voltage-Max (Vsup) :

5.25 V

Pbfree Code :

No

Reach Compliance Code :

Unknown

Technology :

TTL

Terminal Position :

Dual

Pin Count :

14

Family :

LS

Number of Inputs :

2

Supply Voltage-Min (Vsup) :

4.75 V

Logic IC Type :

AND Gate

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Terminal Finish :

TIN LEAD

JESD-30 Code :

R-PDSO-G14

Propagation Delay (tpd) :

18 ns

Qualification Status :

Not Qualified

JESD-609 Code :

e0

Number of Functions :

4
