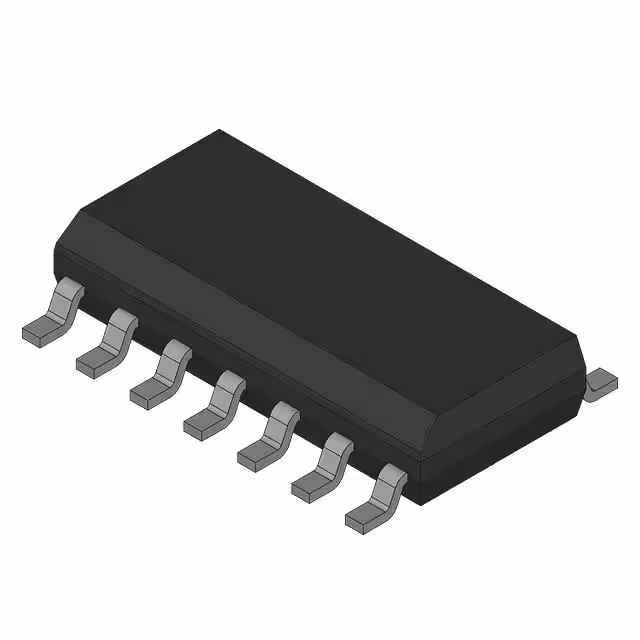

DM74LS14SJ

Manufacturer :

Fairchild Semiconductor

Product Category :

Gates and Inverters

Supply Voltage-Min (Vsup) :

4.75 V

Surface Mount :

yes

Length :

10.2 mm

Number of Inputs :

1

Logic IC Type :

Inverter

HTS Code :

8542.39.00.01

Terminal Pitch :

1.27 mm

Number of Terminals :

14

Terminal Form :

Gull wing

Reach Compliance Code :

Unknown

Temperature Grade :

COMMERCIAL

Width :

5.3 mm

Qualification Status :

Not Qualified

Family :

LS

Pin Count :

14

Supply Voltage-Max (Vsup) :

5.25 V

Number of Functions :

6

Propagation Delay (tpd) :

33 ns

Terminal Position :

Dual

JESD-30 Code :

R-PDSO-G14

Seated Height-Max :

2.1 mm

Package Shape :

RECTANGULAR

Technology :

TTL

Manufacturer :

Rochester Electronics LLC
