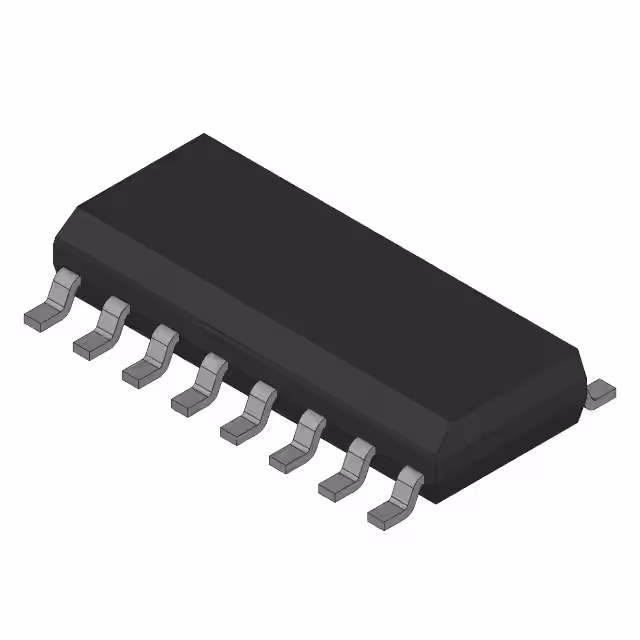

DM74LS153MX

Signal Switches, Multiplexers, Decoders Fairchild Semiconductor DM74LS153MX Overview

The DM74LS153MX from Fairchild Semiconductor exemplifies robust functionality and reliability in the realm of digital signal processing. As a part of the Low-Power Schottky (LS) series, this dual 4-input multiplexer is designed to handle dual select inputs and provide one of four binary inputs as the output, based on the selection. With its compact surface-mount packaging, the DM74LS153MX efficiently manages signal routing and data selection with high speed and minimal power consumption. This makes it an ideal component for implementing in complex digital systems requiring precise control over data flow and signal integrity.

DM74LS153MX Features

• Logic Type: Dual 4-Input Multiplexer
• Operating Voltage: 4.75 to 5.25 V
• Output Current: High 0.4 mA, Low 8 mA
• Propagation Delay Time: 18 ns
• Package / Case: SOIC-16
• Operating Temperature Range: 0°C to 70°C

DM74LS153MX Applications

• Data Routing: Utilizes input selection to route data from multiple sources to a single output, ideal for data-intensive applications such as server farms and telecommunications networks.
• Function Generation: Capable of generating various functions based on the logic applied at the input, suitable for complex computing tasks and signal processing.
• Input/Output Expansion: Enables expansion of input/output capabilities in microcontrollers without increasing the number of pins, useful for space-constrained environments like embedded systems and IoT devices.
• Signal Multiplexing: Allows multiple signal lines to be combined and transmitted over a single pathway, critical in applications such as audio and video broadcasting equipment.
