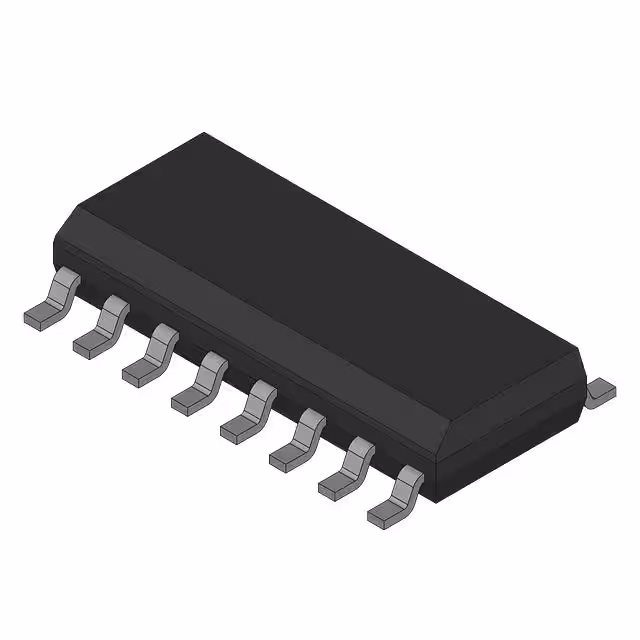

DM74LS157MX

Signal Switches, Multiplexers, Decoders Fairchild Semiconductor DM74LS157MX Overview

The DM74LS157MX, manufactured by Fairchild Semiconductor, is a quintessential component within the Signal Switches, Multiplexers, and Decoders category. Designed to efficiently manage multiple digital signal inputs, this multiplexer from the LS (Low-power Schottky) series stands out for its robust performance in data selection systems. The device is tailored to address the critical needs of routing digital signals to multiple outputs, making it an indispensable tool in complex digital environments. By offering precise and reliable switching capabilities, the DM74LS157MX enhances system performance and scalability.

DM74LS157MX Features

This multiplexer is noted for its high-speed operation and low power consumption, typical of the LS series TTL components. Key features include:

• Quad 2-input multiplexer functionality
• Low power consumption and minimal propagation delay
• Wide operating voltage range from 4.75V to 5.25V
• Compatibility with standard TTL logic levels
• Dual in-line package for easy integration into existing circuits

DM74LS157MX Applications

• Data Routing Systems: Utilized for routing digital signals to various processing or output units, enhancing system flexibility and performance.
• Communication Equipment: Plays a critical role in the selection and forwarding of digital signals within communication infrastructures.
• Test Equipment: Used in electronic test setups for channel selection, allowing simultaneous monitoring and testing of multiple signals.
• Computer Systems: Integral in managing data paths within computers, aiding in the efficient distribution of data to various subsystems.
