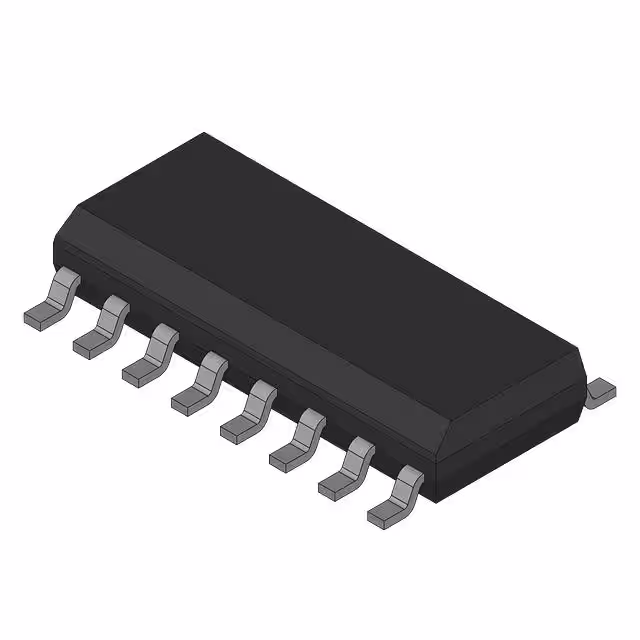

DM74LS174SJ

Manufacturer :

Fairchild Semiconductor

Product Category :

Flip Flops

HTS Code :

8542.39.00.01

Terminal Pitch :

1.27 mm

Package Shape :

RECTANGULAR

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Reach Compliance Code :

Unknown

Logic IC Type :

D FLIP-FLOP

Trigger Type :

POSITIVE EDGE

Output Polarity :

TRUE

Width :

5.3 mm

Supply Voltage-Min (Vsup) :

4.75 V

Supply Voltage-Max (Vsup) :

5.25 V

Terminal Finish :

TIN LEAD

Manufacturer :

Rochester Electronics LLC

JESD-30 Code :

R-PDSO-G16

Pin Count :

16

Number of Bits :

1

Propagation Delay (tpd) :

36 ns

Surface Mount :

yes

fmax-Min :

30 MHz

Number of Terminals :

16

JESD-609 Code :

e0

Terminal Position :

Dual

Technology :

TTL

Number of Functions :

6

Length :

10.2 mm

Family :

LS

Seated Height-Max :

2.1 mm

Qualification Status :

Not Qualified

Temperature Grade :

COMMERCIAL

Terminal Form :

Gull wing

Pbfree Code :

No
