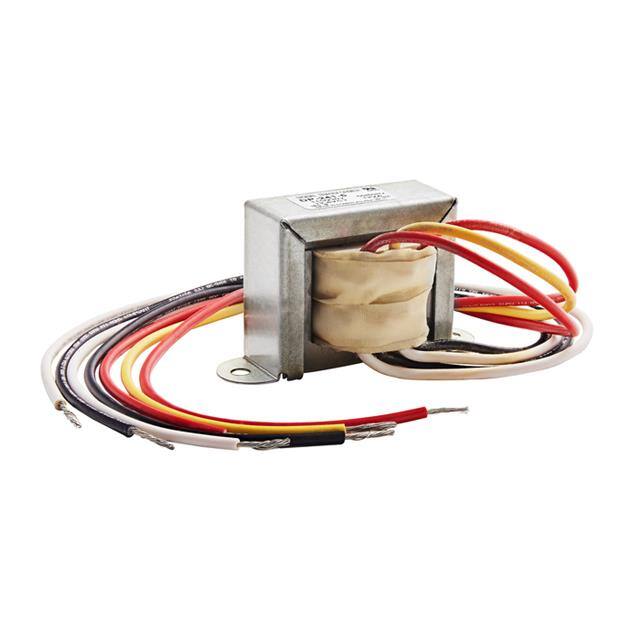

DP-241-5-48L

Manufacturer :

Signal Transformer

Product Category :

Power Transformers

Width :

36.3mm

Voltage - Primary :

115V 230V

Factory Lead Time :

16 Weeks

Moisture Sensitivity Level (MSL) :

Not Applicable

Power - Max :

12VA

Termination Style :

Wire Leads

Mount :

Chassis Mount

Max Power Dissipation :

12W

Series :

Two-4-One™

Size / Dimension :

71.40mm Lx36.30mm W

RoHS Status :

ROHS3 Compliant

Max Output Current :

250mA

Current - Output (Max) :

250mA

Primary Winding(s) :

Dual

Voltage - Isolation :

2500Vrms

Termination :

Wire Leads

Length :

71.4mm

Center Tap :

yes

Weight :

0.7lb 317.51g

Type :

Laminated Core

Voltage - Secondary (Full Load) :

48V

Secondary Winding(s) :

Single

Mounting Type :

Chassis Mount

Published :

2009

Height Seated (Max) :

42.80mm
