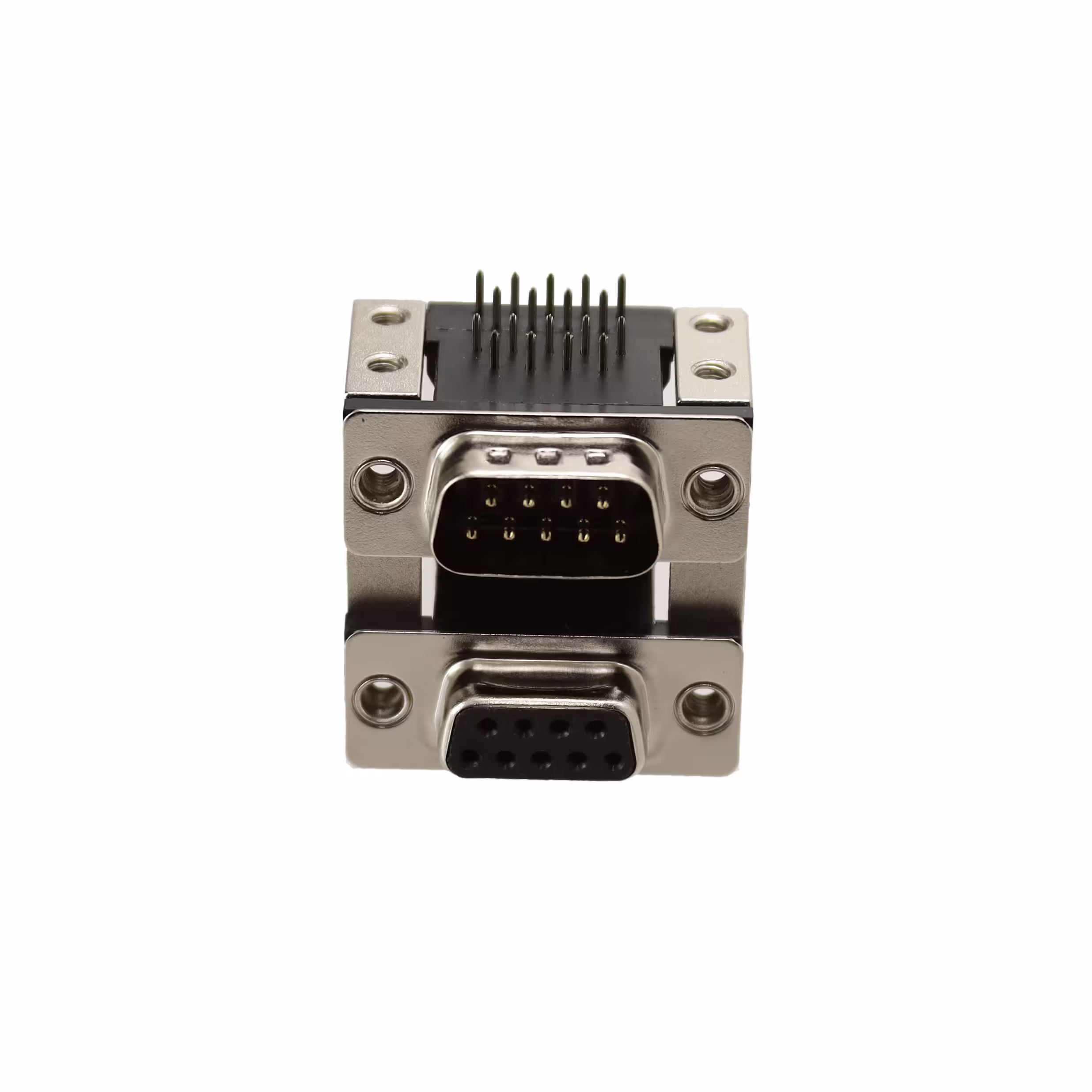

DPD-09-01-B2

Manufacturer :

Adam Tech

Product Category :

D-Sub Connector Assemblies

ECCN Code :

EAR99

PCB Contact Pattern :

STAGGERED

MIL Conformance :

yes

Mounting Type :

Through Hole, Right Angle

Mating Contact Pitch :

0.109 inch

Connector Type :

Plug, Male Pins; Receptacle, Female Sockets

Reference Standard :

UL, CSA

Body Breadth :

1.244 inch

Connector Style :

D-Type - Stacked

Body Length or Diameter :

1.213 inch

Number of Rows :

2, 2

Color :

Black

Plating Thickness :

30μin

Withdrawl Force-Min :

1.946 N

Operating Temperature :

-55°C~85°C

Body Depth :

0.773 inch

Reliability :

MIL-C-24308

Contact Gender :

MALE/FEMALE

HTS Code :

8536.69.40.30

RoHS Status :

ROHS3 Compliant

PCB Contact Row Spacing :

3.9116 mm

Mounting Option 2 :

Threaded

Voltage - Rated :

250VAC

Dielectric Withstanding Voltage :

1000VAC V

Shell Finish :

Tin

Packaging :

Tray

Factory Lead Time :

9 Weeks

Backset Spacing :

0.318 (8.08mm)

Insertion Force-Max :

2.78 N

Number Of PCB Rows :

2+2

Terminal Pitch :

2.7686mm

Material Flammability Rating :

UL94 V-0

Insulation Resistance :

5000000000Ohm

Shell Material, Finish :

Steel, Nickel Plated

Dielectric Material :

Polybutylene Terephthalate (PBT)

Number of Positions :

9, 9

Feature :

Grounding Indents, Mounting Brackets

Contact Material :

COPPER ALLOY

Body/Shell Style :

PLUG/RECEPTACLE

Contact Resistance :

20mOhm

Length - Termination :

0.126 inch

Series :

DPD

Termination :

Solder

Flange Feature :

Housing/Shell (4-40)

Insulation Material :

GLASS FILLED POLYBUTYLENE TEREPHTHALATE

Total Number of Contacts :

18

Shell Size, Connector Layout :

1 DE E ; 1 DE E

Contact Pattern :

STAGGERED

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current Rating (Amps) :

3A

Mating Contact Row Spacing :

0.112 inch

Contact Finish :

Gold

Contact Form :

Stamped

Contact Style :

RND PIN-SKT
