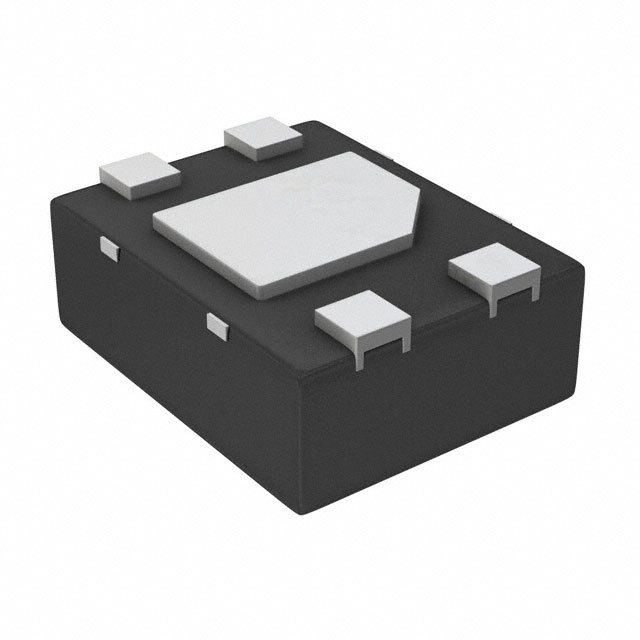

DRV5011ADDMRT

Manufacturer :

Texas Instruments

Product Category :

Magnetic Sensors - Switches (Solid State)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packaging :

Tape and Reel (TR)

Voltage - Supply :

2.5V~5.5V

Current - Supply (Max) :

3mA

Width :

1.1mm

Sensing Range :

±0.6mT Trip, ±3.8mT Release

Thickness :

400μm

Height :

400μm

Package / Case :

4-XFDFN Exposed Pad

Current - Output (Max) :

30mA

Test Condition :

-40°C ~ 150°C

Housing :

Plastic

Polarization :

North Pole, South Pole

Termination Type :

Solder

Magnetic Field Range-Max :

3.8 mT

Mounting Type :

Surface Mount

RoHS Status :

ROHS3 Compliant

JESD-609 Code :

e3

Length :

1.4mm

Base Part Number :

DRV5011

Output Type :

Push-Pull

Additional Feature :

IT HAVE SENSITIVITY OF PLUS OR MINUS 2 MT

Number of Pins :

4

Pbfree Code :

yes

Output Range :

-5-20mA

Factory Lead Time :

6 Weeks

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Terminal Finish :

Matte Tin (Sn)

Surface Mount :

yes

Magnetic Field Range-Min :

-3.8 mT

Function :

Latch

Operating Temperature :

-40°C~135°C TA
