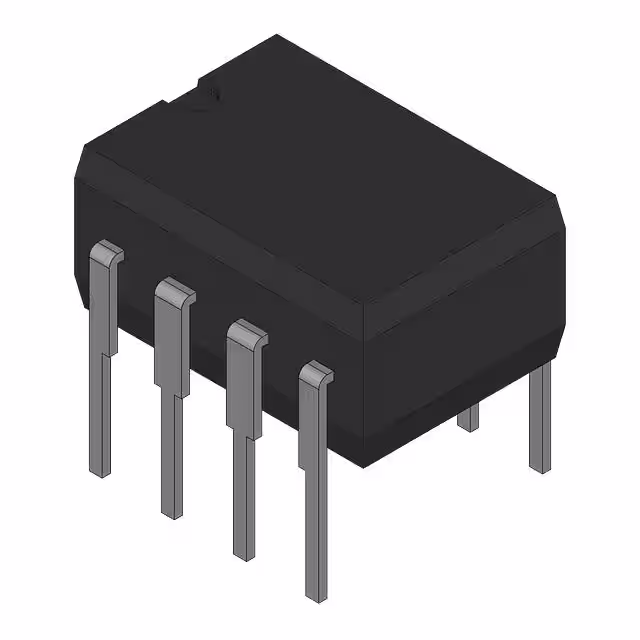

DS1005H-75

Manufacturer :

Analog Devices, Inc.

Product Category :

Delay Lines

Pin Count :

8

Package Shape :

RECTANGULAR

Length :

9.4615 mm

Number of Functions :

1

Number of Terminals :

8

Reach Compliance Code :

Unknown

Input Frequency-Max (fmax) :

8.33333 MHz

Total Delay-Nom (td) :

75 ns

Terminal Position :

Dual

Terminal Form :

Gull wing

Qualification Status :

COMMERCIAL

Supply Voltage-Min (Vsup) :

4.75 V

Technology :

CMOS

Supply Voltage-Max (Vsup) :

5.25 V

Terminal Finish :

TIN LEAD

Surface Mount :

yes

Terminal Pitch :

2.54 mm

Temperature Grade :

COMMERCIAL

Number of Taps/Steps :

5

Seated Height-Max :

4.57 mm

Peak Reflow Temperature (Cel) :

240

Family :

CMOS/TTL

Output Polarity :

TRUE

Pbfree Code :

No

JESD-609 Code :

e0

Logic IC Type :

SILICON DELAY LINE

JESD-30 Code :

R-PDSO-G8

Additional Feature :

BOTH LEADING and TRAILING EDGE ACCURACY; MAX FAN OUT OF 10 74LS LOAD PER OUTPUT

Manufacturer :

Rochester Electronics LLC

Programmable Delay Line :

No
