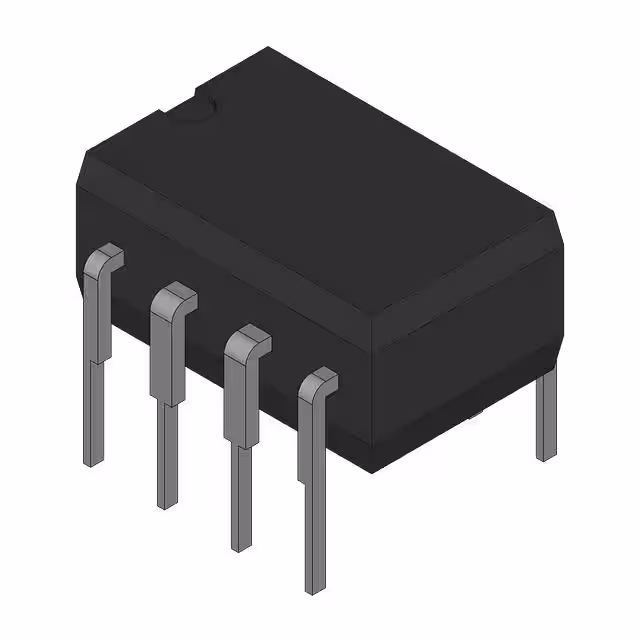

DS1013H-10

Manufacturer :

Analog Devices, Inc.

Product Category :

Delay Lines

Manufacturer :

Rochester Electronics LLC

Pbfree Code :

No

Supply Voltage-Min (Vsup) :

4.75 V

Qualification Status :

COMMERCIAL

Programmable Delay Line :

No

Terminal Form :

THROUGH-HOLE

Peak Reflow Temperature (Cel) :

245

Terminal Position :

Dual

Terminal Finish :

TIN LEAD

Terminal Pitch :

2.54 mm

Number of Taps/Steps :

1

Technology :

CMOS

Package Shape :

RECTANGULAR

Supply Voltage-Max (Vsup) :

5.25 V

Temperature Grade :

COMMERCIAL

Seated Height-Max :

4.572 mm

Length :

9.375 mm

JESD-30 Code :

R-PDIP-T8

Pin Count :

8

Total Delay-Nom (td) :

10 ns

Family :

CMOS

Additional Feature :

BOTH LEADING and TRAILING EDGE ACCURACY; MAX FAN OUT OF 10 74LS LOAD PER OUTPUT

Output Polarity :

TRUE

JESD-609 Code :

e0

Width :

7.62 mm

Number of Terminals :

8

Logic IC Type :

SILICON DELAY LINE

Reach Compliance Code :

Unknown

Input Frequency-Max (fmax) :

33.3333 MHz

Number of Functions :

3

Surface Mount :

No
