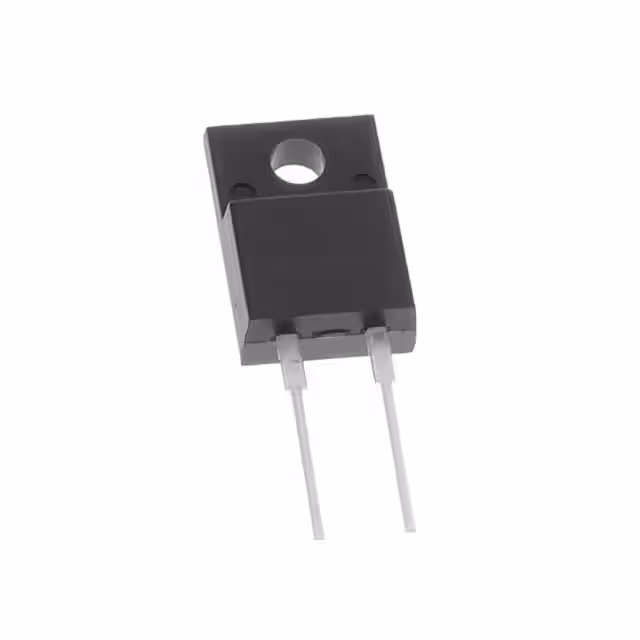

DTH8E06FP

Manufacturer :

Diodes Incorporated

Product Category :

Diodes - Rectifiers - Single

Rectifier Type :

GENERAL PURPOSE

Minimum Operating Temperature :

- 55 C

Current - Average Rectified (Io) :

8A

Voltage - DC Reverse (Vr) (Max) :

600 V

Product Status :

Active

Capacitance @ Vr, F :

-

Subcategory :

Diodes and Rectifiers

Product Type :

Rectifiers

Brand :

Diodes Incorporated

Supplier Device Package :

ITO-220AC (Type WX)

Voltage - Forward (Vf) (Max) @ If :

2.9 V @ 8 A

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Vf - Forward Voltage :

2.9 V

Configuration :

Single

Max Surge Current :

250 A

Mounting Type :

Through Hole

Type :

Fast Recovery Rectifiers

Diode Type :

Standard

Package Type :

ITO220AC

Package :

Tube

Maximum Operating Temperature :

+ 175 C

Product Category :

Rectifiers

Operating Temperature - Junction :

-55°C ~ 175°C

RoHS :

Details

Reverse Recovery Time (trr) :

45 ns

Mounting Style :

Through Hole

Manufacturer :

Diodes Incorporated

Packaging :

Tube

Product :

Rectifiers

Series :

-

Recovery Time :

25 ns

Package / Case :

TO-220-2 Full Pack, Isolated Tab

Current - Reverse Leakage @ Vr :

30 μA @ 600 V
