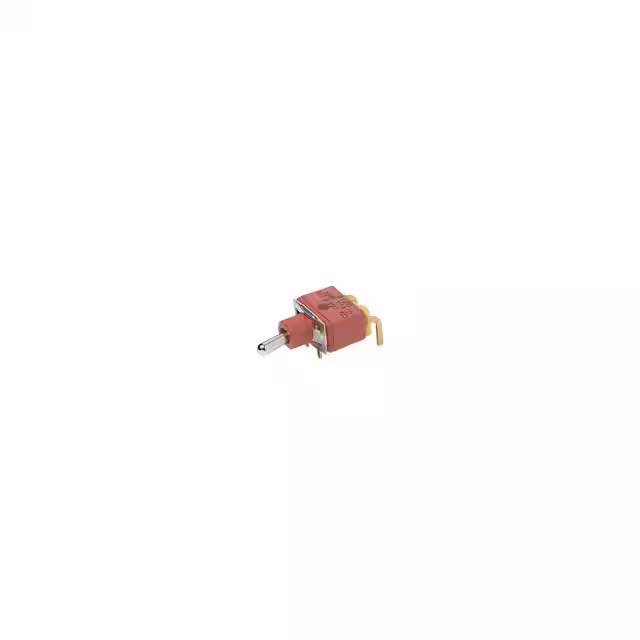

E201J1ASE2

Manufacturer :

C&K

Product Category :

Series :

E

Pbfree Code :

yes

HTS Code :

8536.50.90.65

Product Status :

Active

Package :

Bulk

Termination Type :

Solder

Factory Lead Time :

16 Weeks

Product :

Rocker Switches

Contact Current(DC)-Max :

7.5 A

Reach Compliance Code :

Compliant

Base Product Number :

E201J

Ingress Protection :

-

Actuator Type :

Concave (Standard V)

Terminal Finish :

Matte Tin (Sn) - with Nickel (Ni) barrier

Sealing :

EPOXY TERMINAL SEALED

Contact Voltage(DC)-Max :

28 V

Circuit :

DPDT

Actuator Marking :

No Marking

RoHS :

Details

Switch Action :

LATCHED

Illumination Type, Color :

-

Body Length or Diameter :

12.7 mm

Surface Mount :

No

Switch Function :

On-On

Lamp Type :

-

Features :

-

Voltage Rating - DC :

28 V

JESD-609 Code :

e3

Operating Temperature :

-30°C ~ 85°C

Product Type :

Rocker Switches

Manufacturer :

CandK Switches

Product Category :

Rocker Switches

Mounting Type :

Through Hole, Right Angle

Body Height :

11.43 mm

Subcategory :

Switches

Illumination Color :

-

ECCN Code :

EAR99

Mechanical Life :

-

Contact Voltage(AC)-Max :

125 V

Illumination Voltage (Nominal) :

-

Termination Style :

PC Pin

Mounting Feature :

THROUGH HOLE-RIGHT ANGLE

Current Rating (Amps) :

7.5A (AC/DC)

Switch Type :

ROCKER SWITCH

Brand :

CandK

Voltage Rating - AC :

125 V

Color - Actuator/Cap :

Black

Panel Cutout Dimensions :

-

Body Breadth :

12.7 mm

Electrical Life :

40,000 Cycles

Contact Current(AC)-Max :

7.5 A
