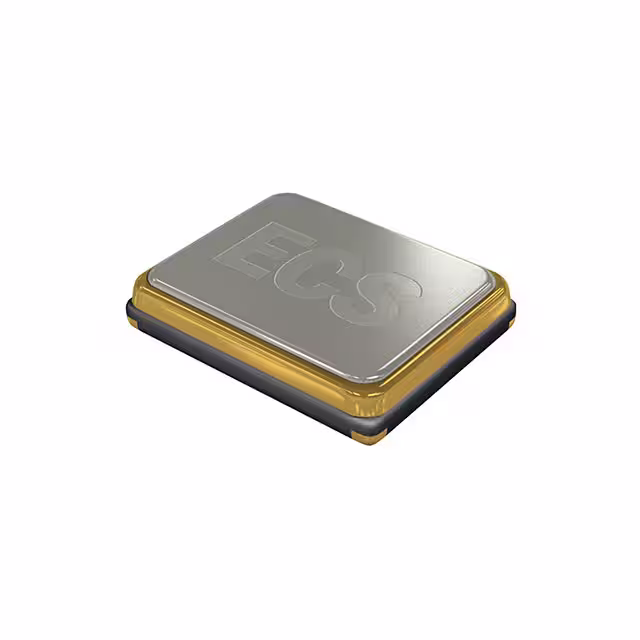

ECS-120-20-3X-TR
Or copy the link below:
- Mfr.Part #
- ECS-120-20-3X-TR
- Manufacturer
- ECS Inc. International
- Package / Case
- HC-49/US
- Datasheet
- Download
- Description
- CRYSTAL 12.0000MHZ 20PF SMD
- Stock
- 72,933
- In Stock ：
- 72,933
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ECS Inc. International
- Product Category :
- Crystals
- Operating Frequency :
- 12MHz
- Package / Case :
- HC-49/US
- Tolerance :
- 0.003%
- Terminal Finish :
- Tin/Copper (Sn/Cu)
- Published :
- 1999
- JESD-609 Code :
- e2
- Mounting Type :
- Surface Mount
- Mount :
- Surface Mount
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Free :
- Lead Free
- Size / Dimension :
- 0.276Lx0.161W 7.00mmx4.10mm
- Additional Feature :
- Tape and Reel
- Operating Temperature :
- -10°C~70°C
- Load Capacitance :
- 20pF
- Packaging :
- Tape and Reel (TR)
- Operating Mode :
- Fundamental
- Frequency Stability :
- ±50ppm
- Height :
- 2.3114mm
- Type :
- MHz Crystal
- HTS Code :
- 8541.60.00.50
- RoHS Status :
- ROHS3 Compliant
- Frequency Tolerance :
- ±30ppm
- Height Seated (Max) :
- 0.091 2.30mm
- ECCN Code :
- EAR99
- Termination :
- SMD/SMT
- ESR (Equivalent Series Resistance) :
- 60Ohm
- Factory Lead Time :
- 9 Weeks
- Number of Pins :
- 2
- Series :
- CSM-3X
- Drive Level :
- 100 µW
- Frequency :
- 12MHz
- Pbfree Code :
- yes
- Datasheets
- ECS-120-20-3X-TR
ECS-120-20-3X-TR datasheet pdf and Crystals product details from ECS Inc. stock available at Xinshop
The ECS International Crystals ECS-120-20-3X-TR is a surface mount crystal oscillator with a frequency of 12.0000MHz and a load capacitance of 20pF. It is designed for use in a wide range of applications, including telecommunications, consumer electronics, automotive, and industrial applications.
Features:
• Frequency: 12.0000MHz
• Load Capacitance: 20pF
• Package: 3x2mm SMD
• Frequency Stability: ±20ppm
• Operating Temperature Range: -20°C to +70°C
• Storage Temperature Range: -40°C to +85°C
• RoHS Compliant
Applications:
The ECS International Crystals ECS-120-20-3X-TR is suitable for use in a wide range of applications, including:
• Telecommunications
• Consumer Electronics
• Automotive
• Industrial
• Medical
• Networking
• Computer
• Instrumentation
