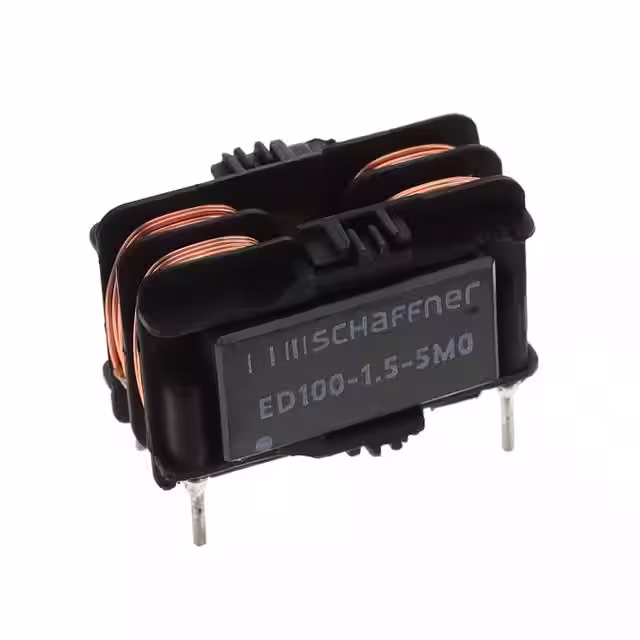

ED100-1.5-5M0
Or copy the link below:
- Mfr.Part #
- ED100-1.5-5M0
- Manufacturer
- Schaffner EMC, Inc.
- Package / Case
- Vertical, 4 PC Pin
- Datasheet
- Download
- Description
- COMMON MODE CHOKE
- Stock
- 448
- In Stock ：
- 448
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schaffner EMC, Inc.
- Product Category :
- Common Mode Chokes
- Voltage Rating - AC :
- 300V
- Packaging :
- Tube
- Manufacturer :
- Schaffner
- RoHS :
- Details
- Package :
- Box
- Brand :
- Schaffner
- Approval Agency :
- -
- Current Rating (Max) :
- 1.5A
- Inductance @ Frequency :
- 5 mH @ 10 kHz
- Height (Max) :
- 0.610" (15.50mm)
- DC Resistance (DCR) (Max) :
- 300mOhm (Typ)
- Features :
- -
- Product Status :
- Active
- Voltage Rating - DC :
- -
- Product Type :
- Common Mode Chokes
- Series :
- ED100
- Number of Lines :
- 2
- Package / Case :
- Vertical, 4 PC Pin
- Ratings :
- -
- Product Category :
- Common Mode Chokes / Filters
- Mounting Type :
- Through Hole
- Operating Temperature :
- -40°C ~ 125°C
- Size / Dimension :
- 0.945" L x 0.563" W (24.00mm x 14.30mm)
- Filter Type :
- Power Line
- Subcategory :
- Inductors, Chokes and Coils
- Datasheets
- ED100-1.5-5M0
ED100-1.5-5M0 datasheet pdf and Common Mode Chokes product details from Schaffner EMC Inc. stock available at
