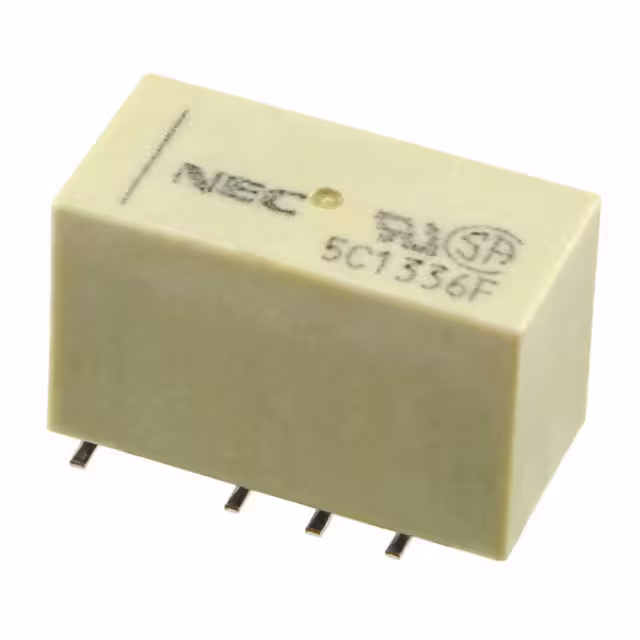

EE2-12SNUH-L

Manufacturer :

KEMET

Product Category :

Signal Relays, Up to 2 Amps

Height :

9 mm

Depth :

7.5 mm

Max Voltage Rating (AC) :

250 V

Coil Resistance :

1.44 kΩ

Termination :

Gull wing

Release Time :

1 ms

Number of Pins :

8

Width :

7.5 mm

Relay Type :

GENERAL PURPOSE

Power Consumption :

100 mW

Voltage Rating (AC) :

250 V

Contact Current Rating :

2 A

REACH SVHC :

No SVHC

Coil Voltage (DC) :

12 V

Max Operating Temperature :

85 °C

Mount :

PCB, Surface Mount

Length :

15 mm

Contact Material :

Gold, Silver

Min Operating Temperature :

-40 °C

Coil Type :

Latching, Single Coil

RoHS :

Compliant

Current Rating :

2 A

Coil Power :

100 mW

Max Voltage Rating (DC) :

220 V

Throw Configuration :

DPDT

Number of Poles :

1

Operate Time :

2 ms

Radiation Hardening :

No

Coil Current :

8.33 mA

Max Current Rating :

2 A
