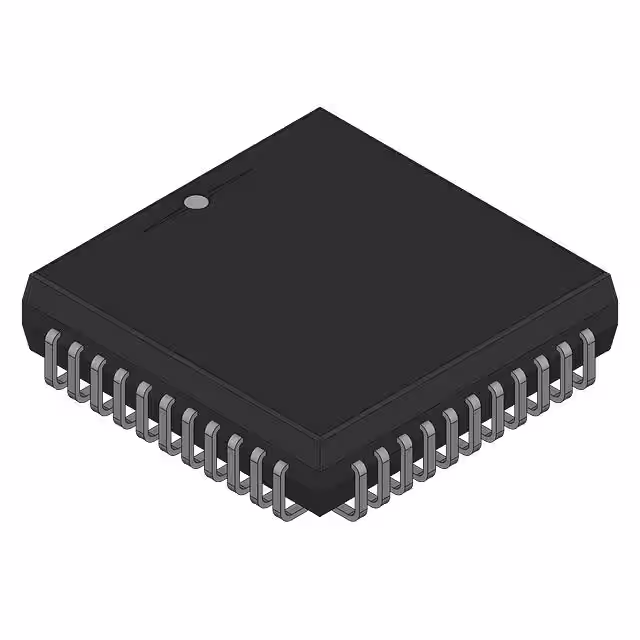

EE87C51RC24

Manufacturer :

Altera (Intel)

Product Category :

Microcontrollers

Supplier Device Package :

44-PLCC

Connectivity :

SIO

Data Converters :

-

ECCN (US) :

EAR99

HTS :

8542.31.00.01

Device Core :

MCS 51

Peripherals :

WDT

Package Width :

16.7(Max)

Package Length :

16.7(Max)

Pin Count :

44

Operating Temperature :

-40°C ~ 85°C (TA)

Watchdog :

1

Program Memory Size :

32kB

Lead Shape :

J-Lead

I2S :

0

Typical Operating Supply Voltage (V) :

5

Real Time Clock :

No

UART :

0

USART :

0

SPI :

0

Maximum Power Dissipation (mW) :

1500

Family Name :

MCS51

Instruction Set Architecture :

CISC

Standard Package Name :

LCC

Minimum Operating Supply Voltage (V) :

4.5

Maximum Operating Temperature (°C) :

85

Program Memory Type :

EPROM

Mounting Type :

Surface Mount

EEPROM Size :

-

Package :

Bulk

Core Size :

8-Bit

Mounting :

Surface Mount

I2C :

0

Supplier Temperature Grade :

Extended

Product Status :

Active

Minimum Operating Temperature (°C) :

-40

PCB changed :

44

RoHS Status :

RoHS Compliant

Core Processor :

MCS 51

Voltage - Supply (Vcc/Vdd) :

4.5V ~ 5.5V

Maximum CPU Frequency (MHz) :

24

Programmability :

yes

Ethernet :

0

Parallel Master Port :

No

Oscillator Type :

Internal

Speed :

24MHz

CECC Qualified :

No

Maximum Operating Supply Voltage (V) :

5.5

USB :

0

Maximum Expanded Memory Size :

64KB

Supplier Package :

PLCC

Package Height :

3.81(Min)

Number of I/O :

32

RAM Size :

512B

Data Bus Width (bit) :

8

Base Product Number :

EE87C51RC

No. of Timers :

3

Maximum Clock Rate (MHz) :

24

Series :

87C

Package / Case :

44-LCC (J-Lead)

Core Architecture :

8051
