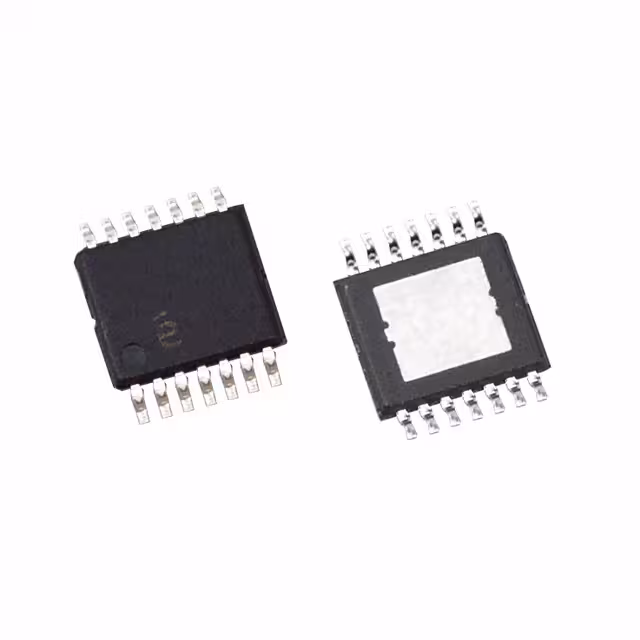

EL9214IREZ

Manufacturer :

Intersil (Renesas Electronics Corporation)

Product Category :

Instrumentation, OP Amps, Buffer Amps

Packaging :

Tube

Series :

--

Average Bias Current-Max (IIB) :

0.4μA

Slew Rate :

115 V/us

Neg Supply Voltage-Max (Vsup) :

-7.5V

Slew Rate-Min :

90 V/us

Operating Temperature (Min) :

-40°C

Package / Case :

14-TSSOP (0.173, 4.40mm Width) Exposed Pad

Architecture :

VOLTAGE-FEEDBACK

Voltage Gain-Min :

560

Temperature Grade :

Industrial

Programmable Power :

No

-3db Bandwidth :

130MHz

Supplier Device Package :

14-HTSSOP

ECCN Code :

EAR99

Width :

4.4mm

Frequency Compensation :

yes

Terminal Pitch :

0.65mm

Input Offset Voltage-Max :

2000μV

Height Seated (Max) :

1.2mm

Wideband :

yes

RoHS Status :

RoHS Compliant

Supply Voltage Limit-Max :

7.5V

Operating Temperature (Max) :

85°C

Voltage - Supply, Single/Dual (±) :

5 V ~ 13.5 V, ±2.5 V ~ 6.75 V

Surface Mount :

yes

Number of Circuits :

4

Number of Functions :

4

Gain Bandwidth Product :

63MHz

Peak Reflow Temperature (Cel) :

260

Power Supplies :

+-6V

JESD-609 Code :

e3

Neg Supply Voltage-Nom (Vsup) :

-6V

Current - Input Bias :

1.4µA

Output Type :

--

Micropower :

No

Operating Temperature :

-40°C ~ 85°C

Voltage - Input Offset :

1mV

Time@Peak Reflow Temperature-Max (s) :

40

HTS Code :

8542.33.00.01

Low-Bias :

No

Amplifier Type :

Operational Amplifier

Supply Voltage :

6V

Terminal Finish :

MATTE TIN

Pin Count :

14

Number of Terminals :

14

Common Mode Rejection Ratio :

100 dB

Supply Current-Max :

9.6mA

Current - Supply :

8.8mA

Terminal Position :

Dual

Qualification Status :

Not Qualified

Bias Current-Max (IIB) @25C :

0.4μA

Base Part Number :

EL9214

Current - Output / Channel :

300mA

Reach Compliance Code :

Compliant

Low-Offset :

No

Length :

5mm

JESD-30 Code :

R-PDSO-G14

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Terminal Form :

Gull wing

Unity Gain BW-Nom :

63000 kHz

Mounting Type :

Surface Mount

Power :

No
