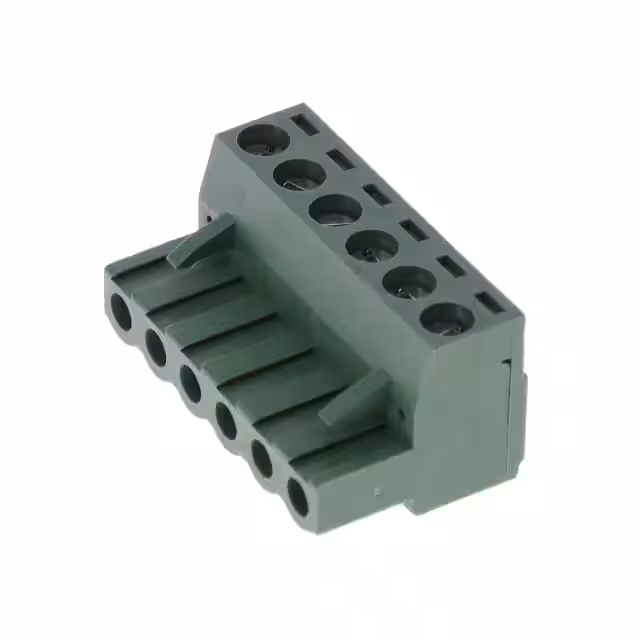

EM252506
Or copy the link below:
- Mfr.Part #
- EM252506
- Manufacturer
- Eaton-Electronics Division
- Package / Case
- Datasheet
- Download
- Description
- EURO (110106) KEEP
- Stock
- 95
- In Stock ：
- 95
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Eaton-Electronics Division
- Product Category :
- Headers, Plugs and Sockets
- Feature :
- Retention Latches (Non-Wire Side)
- Pitch :
- 0.197 5.00mm
- Type :
- Plug, Female Sockets
- Housing Material :
- Thermoplastic
- Insulation Height :
- 0.570 14.48mm
- Series :
- Euro-Mag EM2525
- Number of Levels :
- 1
- Contact Mating Finish :
- Tin
- Current - UL :
- 16A
- Positions Per Level :
- 6
- Plug Wire Entry :
- 180°
- Number of Positions :
- 6
- Screw Size :
- M3
- Packaging :
- Bulk
- Contact Material :
- Brass
- Wire Gauge or Range - AWG :
- 12-26 AWG
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Operating Temperature :
- -40°C~105°C
- Factory Lead Time :
- 15 Weeks
- Color :
- Green
- Mounting Type :
- Free Hanging (In-Line)
- Voltage - UL :
- 300V
- Material Flammability Rating :
- UL94 V-0
- Termination Style :
- Screw - Rising Cage Clamp
- Datasheets
- EM252506
Bulk 0.197 5.00mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets Euro-Mag EM2525 Thermoplastic Tin Brass
EM252506 Overview
Its mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.It is part of the Euro-Mag EM2525 Series of products.A number of features make it more powerful because of its Retention Latches (Non-Wire Side) feature.There is no operating temperature for the device.Several of the benefits of this part are also shared by other Plug, Female Sockets products.
EM252506 Features
Euro-Mag EM2525 series
EM252506 Applications
There are a lot of Eaton - Electronics Division
EM252506 Terminal Blocks applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
