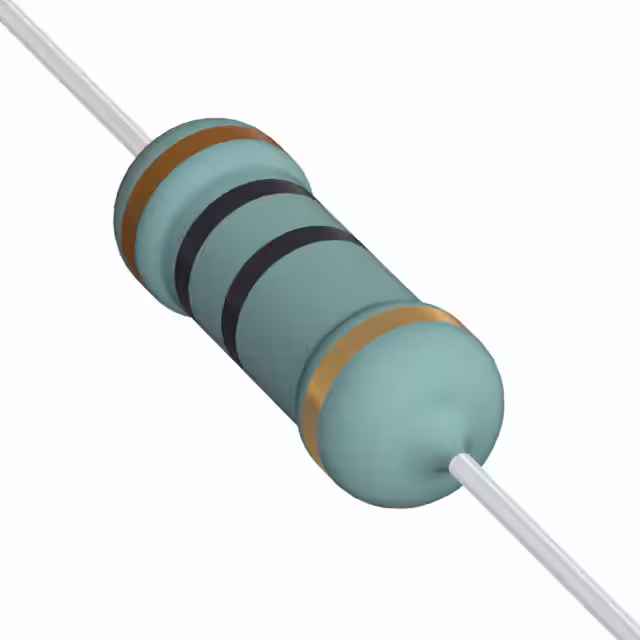

EP1WS10RJ

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Height :

-

Temperature Range @ Derated Power :

70 to 275

Lead Diameter :

0.54 mm

Composition :

Wirewound

Temperature Coefficient :

±400(ppm/°C)

Product Length (mm) :

10(mm)

Width :

-

Package / Case :

Axial

Manufacturer :

TE Connectivity

Maximum Operating Temperature :

+155°C

Technology :

Wire Wound

Product Type :

Wirewound Resistors

Resistance Tolerance :

± 5%

Power Rating :

1W

Tolerance :

±5%

Base Product Number :

EP1W

Brand :

TE Connectivity / Holsworthy

Series :

EP, Neohm

Operating Temp Range :

-55C to 155C

Construction :

Cylindrical

Resistor Type :

Anti-Surge

Operating Temperature Range :

- 55 C to + 155 C

Lead Spacing (nom) :

Not Required(mm)

Product Width :

-

Type :

Wirewound

Case Style :

Epoxy Resin

Packaging :

Ammo

Product Category :

Wirewound Resistors - Through Hole

Features :

Flame Retardant Coating, Pulse Withstanding, Safety

Number of Terminations :

2

Resistance :

10(ohm)

Power (Watts) :

1W

Product Depth (mm) :

Not Required(mm)

Voltage Rating :

500V

Product Diameter (mm) :

3.5(mm)

Size / Dimension :

0.197 Dia x 0.472 L (5.00mm x 12.00mm)

Termination Style :

Axial

Supplier Device Package :

Axial

Product Length :

10mm

Length :

10 mm

Military Standard :

Not Required

Product Status :

Active

Mounting Style :

PCB Mount

Power Rating(s) :

1(W)

Number of Terminals :

2

Operating Temperature :

-55°C ~ 155°C

Failure Rate :

Not Required

RoHS :

Details

Minimum Operating Temperature :

-55°C

Diameter :

3.5 mm

Product Height (mm) :

Not Required(mm)

Flame-Proof Support :

yes

Height - Seated (Max) :

--

Package :

Cut Tape (CT);Tape and Box (TB);

Qualification :

-

Tolerance (+ or -) :

5%

Subcategory :

Resistors
