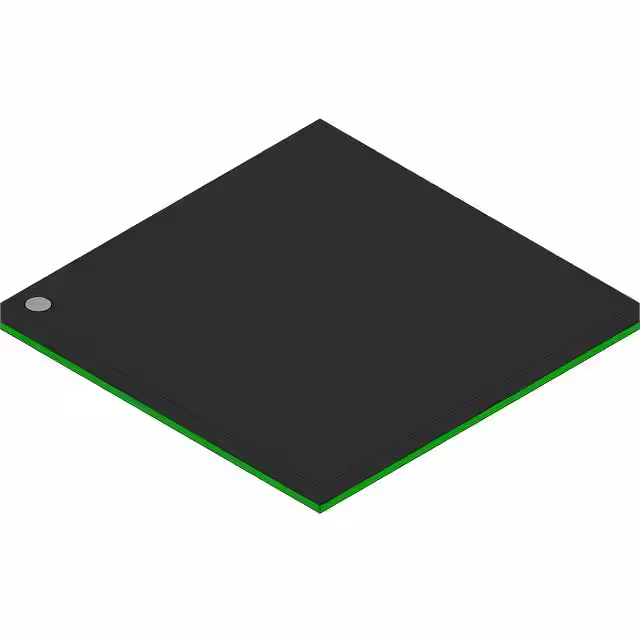

EPM7256AFC256-12

Manufacturer :

Altera

Product Category :

CPLDs (Complex Programmable Logic Devices)

Organization :

0 DEDICATED INPUTS, 164 I/O

Surface Mount :

yes

Number of I/O :

164

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Propagation Delay :

12 ns

RoHS Status :

Non-RoHS Compliant

Temperature Grade :

COMMERCIAL

Pbfree Code :

No

JESD-30 Code :

S-PBGA-B256

JESD-609 Code :

e0

Supply Voltage-Min (Vsup) :

3V

Terminal Pitch :

1mm

Width :

17mm

Pin Count :

256

Terminal Position :

BOTTOM

Peak Reflow Temperature (Cel) :

245

Terminal Form :

Ball

Supply Voltage-Max (Vsup) :

3.6V

Qualification Status :

COMMERCIAL

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Programmable Logic Type :

EE PLD

Terminal Finish :

TIN LEAD

Clock Frequency :

78.1MHz

Number of Terminals :

256

Additional Feature :

256 MACROCELLS; 16 LABS; CONFIGURABLE I/O OPERATION WITH 2.5 OR 3.3

Length :

17mm

Supply Voltage :

3.3V

Operating Temperature (Max) :

70°C

Seated Height-Max :

2.1mm

Output Function :

MACROCELL
