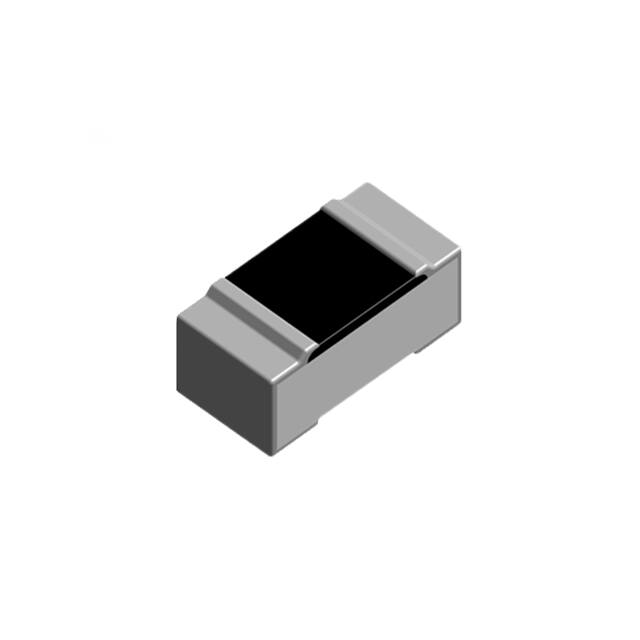

ERA-1AEB181C

Manufacturer :

Panasonic

Product Category :

Chip Resistor - Surface Mount

Width :

0.3 mm

Package / Case :

0201 (0603 Metric)

Temperature Coefficient :

±25ppm/°C

Mounting Style :

PCB Mount

Terminal Finish :

Tin (Sn) - with Nickel (Ni) barrier

Maximum Operating Temperature :

+ 155 C

Rated Temperature :

85 °C

Rated Power Dissipation (P) :

0.05 W

Resistance :

180 Ohms

Qualification :

AEC-Q200

Height - Seated (Max) :

0.010" (0.26mm)

RoHS :

Details

Tolerance :

±0.1%

Package Height :

0.23 mm

Construction :

Chip

Surface Mount :

yes

Ratings :

-

Series :

ERA-1A

Type :

High Reliability Metal Film Chip Resistor

Packing Method :

TAPE, PRESSED

Reference Standard :

AEC-Q200

Package :

Digi-Reel?

Package Shape :

RECTANGULAR PACKAGE

Operating Temperature :

-55°C ~ 155°C

Features :

-

Power (Watts) :

0.05W, 1/20W

Package Width :

0.3 mm

Termination Style :

SMD/SMT

Package Length :

0.6 mm

Technology :

Thin Film

Reach Compliance Code :

Compliant

JESD-609 Code :

e3

Subcategory :

Resistors

Size Code :

0201

Resistor Type :

FIXED RESISTOR

Mounting Feature :

Surface Mount

Product :

Thin Film Resistors SMD

Working Voltage :

25 V

Product Type :

Thin Film Resistors

Supplier Device Package :

0201

Composition :

Thin Film

Minimum Operating Temperature :

- 55 C

Power Rating :

50 mW (1/20 W)

Operating Temperature Range :

- 55 C to + 155 C

Additional Feature :

STANDARD: IEC60115-8

Number of Terminals :

2

Packaging :

MouseReel

Failure Rate :

-

Manufacturer :

Panasonic

Height :

0.23 mm

Length :

0.6 mm

Terminal Shape :

WRAPAROUND

Product Status :

Active

Base Product Number :

ERA-1AE

Size / Dimension :

0.024" L x 0.012" W (0.60mm x 0.30mm)

Voltage Rating :

25 V

Number of Terminations :

2

Brand :

Panasonic

ECCN Code :

EAR99

Pbfree Code :

yes

Product Category :

Thin Film Resistors - SMD
