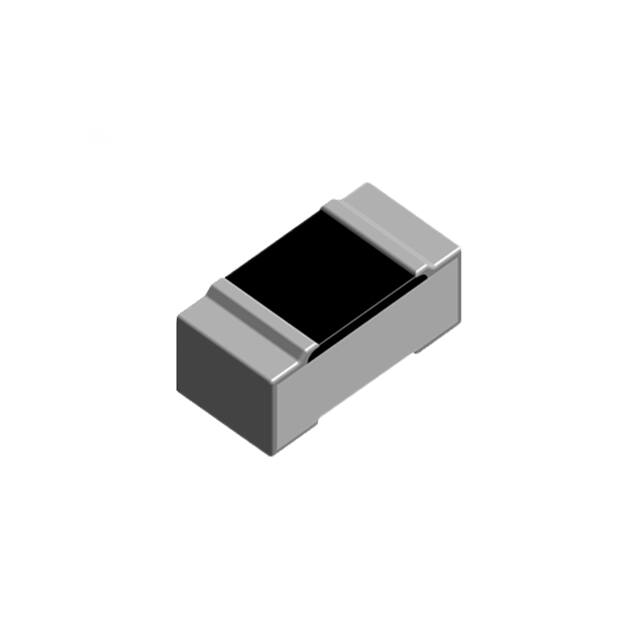

ERA-1AEB241C

Manufacturer :

Panasonic

Product Category :

Chip Resistor - Surface Mount

Base Product Number :

ERA-1AE

Package Shape :

RECTANGULAR PACKAGE

Voltage Rating :

25 V

Subcategory :

Resistors

Package Length :

0.6 mm

Power Rating :

50 mW (1/20 W)

Height - Seated (Max) :

0.010" (0.26mm)

Reach Compliance Code :

Compliant

Surface Mount :

yes

Minimum Operating Temperature :

- 55 C

Supplier Device Package :

0201

Product Category :

Thin Film Resistors - SMD

Resistance :

240 Ohms

Operating Temperature :

-55°C ~ 155°C

Package / Case :

0201 (0603 Metric)

Qualification :

AEC-Q200

Operating Temperature Range :

- 55 C to + 155 C

Size / Dimension :

0.024" L x 0.012" W (0.60mm x 0.30mm)

Type :

High Reliability Metal Film Chip Resistor

Termination Style :

SMD/SMT

JESD-609 Code :

e3

Maximum Operating Temperature :

+ 155 C

Ratings :

-

Package Width :

0.3 mm

Packing Method :

TAPE, PRESSED

Product Status :

Active

Resistor Type :

FIXED RESISTOR

Size Code :

0201

Composition :

Thin Film

Length :

0.6 mm

Mounting Style :

PCB Mount

Package :

Digi-Reel?

Width :

0.3 mm

Terminal Shape :

WRAPAROUND

Working Voltage :

25 V

Brand :

Panasonic

Packaging :

MouseReel

Number of Terminals :

2

Temperature Coefficient :

±25ppm/°C

Terminal Finish :

Tin (Sn) - with Nickel (Ni) barrier

Construction :

Chip

Technology :

Thin Film

Product :

Thin Film Resistors SMD

Height :

0.23 mm

Series :

ERA-1A

Pbfree Code :

yes

Number of Terminations :

2

Tolerance :

±0.1%

Rated Power Dissipation (P) :

0.05 W

Manufacturer :

Panasonic

Reference Standard :

AEC-Q200

Additional Feature :

STANDARD: IEC60115-8

RoHS :

Details

Product Type :

Thin Film Resistors

Rated Temperature :

85 °C

Failure Rate :

-

Mounting Feature :

Surface Mount

Package Height :

0.23 mm

Features :

-

Power (Watts) :

0.05W, 1/20W
