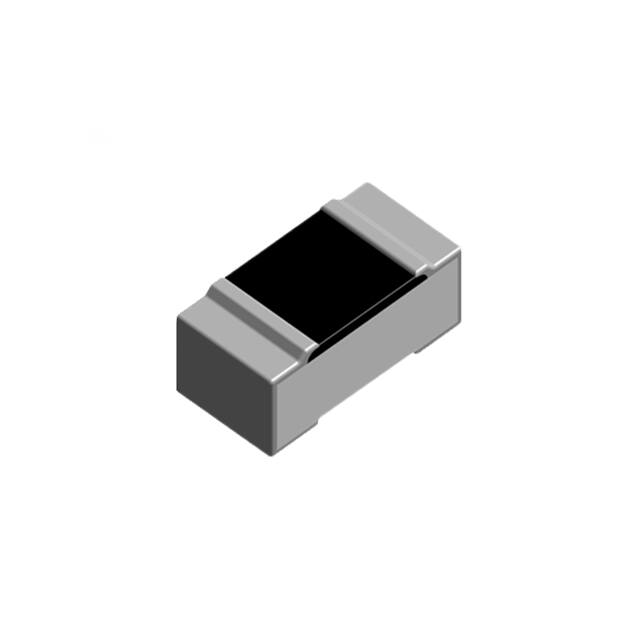

ERA-1AEB301C

Manufacturer :

Panasonic

Product Category :

Chip Resistor - Surface Mount

Technology :

Thin Film

Surface Mount :

yes

Resistor Type :

FIXED RESISTOR

Number of Terminals :

2

Size Code :

0201

Power Rating :

50 mW (1/20 W)

Resistance :

300 Ohms

Size / Dimension :

0.024" L x 0.012" W (0.60mm x 0.30mm)

Failure Rate :

-

Operating Temperature Range :

- 55 C to + 155 C

Package / Case :

0201 (0603 Metric)

Pbfree Code :

yes

Voltage Rating :

25 V

Qualification :

AEC-Q200

Base Product Number :

ERA-1AE

Maximum Operating Temperature :

+ 155 C

Package Width :

0.3 mm

Packaging :

MouseReel

Height - Seated (Max) :

0.010" (0.26mm)

Brand :

Panasonic

Power (Watts) :

0.05W, 1/20W

Package Height :

0.23 mm

Tolerance :

±0.1%

Manufacturer :

Panasonic

Product Status :

Active

Product :

Thin Film Resistors SMD

Composition :

Thin Film

Termination Style :

SMD/SMT

Product Category :

Thin Film Resistors - SMD

Product Type :

Thin Film Resistors

RoHS :

Details

Length :

0.6 mm

Number of Terminations :

2

Terminal Finish :

Tin (Sn) - with Nickel (Ni) barrier

Construction :

Chip

Height :

0.23 mm

Additional Feature :

STANDARD: IEC60115-8

Packing Method :

TAPE, PRESSED

Working Voltage :

25 V

Minimum Operating Temperature :

- 55 C

Subcategory :

Resistors

Features :

-

JESD-609 Code :

e3

Width :

0.3 mm

Reach Compliance Code :

Compliant

Reference Standard :

AEC-Q200

Terminal Shape :

WRAPAROUND

Package Shape :

RECTANGULAR PACKAGE

Supplier Device Package :

0201

Ratings :

-

Package Length :

0.6 mm

Rated Temperature :

85 °C

Rated Power Dissipation (P) :

0.05 W

Mounting Feature :

Surface Mount

Package :

Digi-Reel?

Mounting Style :

PCB Mount

Series :

ERA-1A

Type :

High Reliability Metal Film Chip Resistor

Temperature Coefficient :

±25ppm/°C

Operating Temperature :

-55°C ~ 155°C
