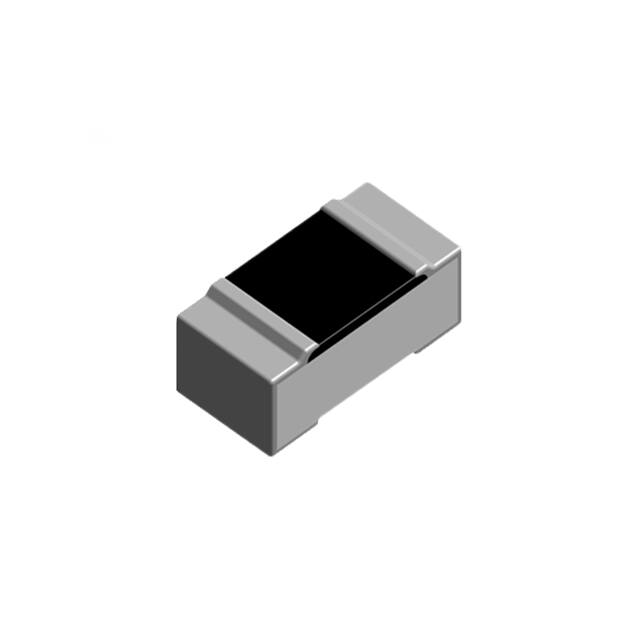

ERA-1AEB332C

Manufacturer :

Panasonic

Product Category :

Chip Resistor - Surface Mount

Height :

0.23 mm

Reference Standard :

AEC-Q200

Package Width :

0.3 mm

Mounting Feature :

Surface Mount

Packaging :

MouseReel

Composition :

Thin Film

Operating Temperature Range :

- 55 C to + 155 C

Package Height :

0.23 mm

Construction :

Chip

Series :

ERA-xA

Rated Temperature :

85 °C

Size Code :

0201

Features :

-

Tolerance :

0.1 %

Maximum Operating Temperature :

+ 155 C

Minimum Operating Temperature :

- 55 C

Product :

Thin Film Resistors SMD

Failure Rate :

-

Number of Terminations :

2

Manufacturer :

Panasonic

Packing Method :

TAPE, PRESSED

Resistance :

3.3 kΩ

Resistor Type :

FIXED RESISTOR

Size / Dimension :

0.024 L x 0.012 W (0.60mm x 0.30mm)

Termination Style :

SMD/SMT

Lead Free :

Lead Free

Operating Temperature :

-55°C ~ 155°C

Additional Feature :

STANDARD: IEC60115-8

Mounting Style :

PCB Mount

Brand :

Panasonic

Terminal Finish :

Tin (Sn) - with Nickel (Ni) barrier

Voltage Rating :

25 V

Rated Power Dissipation (P) :

0.05 W

Package Shape :

RECTANGULAR PACKAGE

Reach Compliance Code :

Compliant

Product Type :

Thin Film Resistors

Supplier Device Package :

0201

Package / Case :

0201 (0603 Metric)

Width :

0.3 mm

Working Voltage :

25 V

Number of Terminals :

2

Power Rating :

50 mW

Product Category :

Thin Film Resistors - SMD

Terminal Shape :

WRAPAROUND

Qualification :

AEC-Q200

Temperature Coefficient :

25 PPM / C

Length :

0.6 mm

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Subcategory :

Resistors

Surface Mount :

yes

Product Status :

Active

JESD-609 Code :

e3

Technology :

Thin Film

Power (Watts) :

0.05W, 1/20W

Height - Seated (Max) :

0.010 (0.26mm)

Package Length :

0.6 mm

Type :

High Reliability Metal Film Chip Resistor

Ratings :

-

RoHS :

Details

Lifecycle Status :

Production (Last Updated: 2 years ago)

Base Product Number :

ERA-1AE

Pbfree Code :

yes
