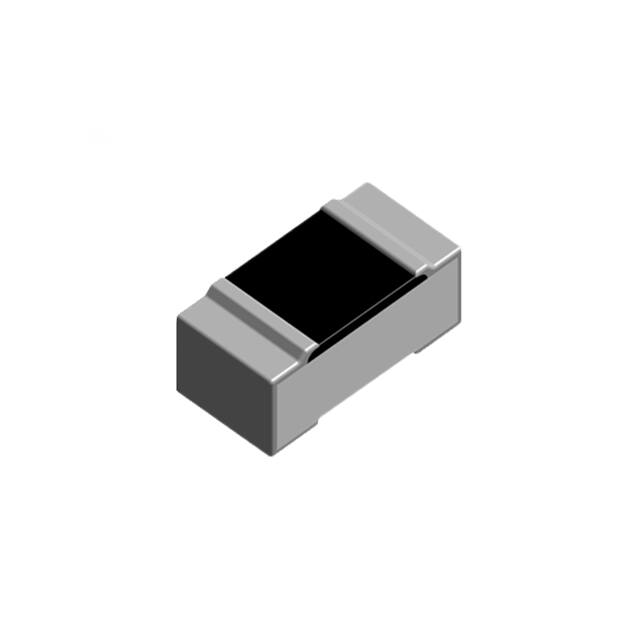

ERA-1AEB512C

Manufacturer :

Panasonic

Product Category :

Chip Resistor - Surface Mount

Height :

0.23 mm

Failure Rate :

-

Technology :

Thin Film

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Product Type :

Thin Film Resistors

Mounting Feature :

Surface Mount

Rated Temperature :

85 °C

Tolerance :

0.1 %

Length :

0.6 mm

Additional Feature :

STANDARD: IEC60115-8

Type :

High Reliability Metal Film Chip Resistor

Width :

0.3 mm

Features :

-

Minimum Operating Temperature :

- 55 C

Product Status :

Active

Size Code :

0201

Package Height :

0.23 mm

RoHS :

Details

Height - Seated (Max) :

0.010 (0.26mm)

Power Rating :

50 mW (1/20 W)

Working Voltage :

25 V

Qualification :

AEC-Q200

Package / Case :

0201 (0603 Metric)

Product Category :

Thin Film Resistors - SMD

Package Width :

0.3 mm

Temperature Coefficient :

25 PPM / C

Size / Dimension :

0.024 L x 0.012 W (0.60mm x 0.30mm)

Composition :

Thin Film

Reach Compliance Code :

Compliant

Series :

ERA-xA

Pbfree Code :

yes

JESD-609 Code :

e3

Ratings :

-

Resistor Type :

FIXED RESISTOR

Terminal Finish :

Tin (Sn) - with Nickel (Ni) barrier

Package Shape :

RECTANGULAR PACKAGE

Resistance :

5.1 kOhms

Terminal Shape :

WRAPAROUND

Operating Temperature Range :

- 55 C to + 155 C

Product :

Thin Film Resistors SMD

Subcategory :

Resistors

Voltage Rating :

25 V

Operating Temperature :

-55°C ~ 155°C

Maximum Operating Temperature :

+ 155 C

Base Product Number :

ERA-1AE

Reference Standard :

AEC-Q200

Termination Style :

SMD/SMT

Package Length :

0.6 mm

Packing Method :

TAPE, PRESSED

Rated Power Dissipation (P) :

0.05 W

Packaging :

MouseReel

Number of Terminals :

2

Construction :

Chip

Mounting Style :

PCB Mount

Surface Mount :

yes

Power (Watts) :

0.05W, 1/20W

Number of Terminations :

2

Supplier Device Package :

0201

Manufacturer :

Panasonic

Brand :

Panasonic
