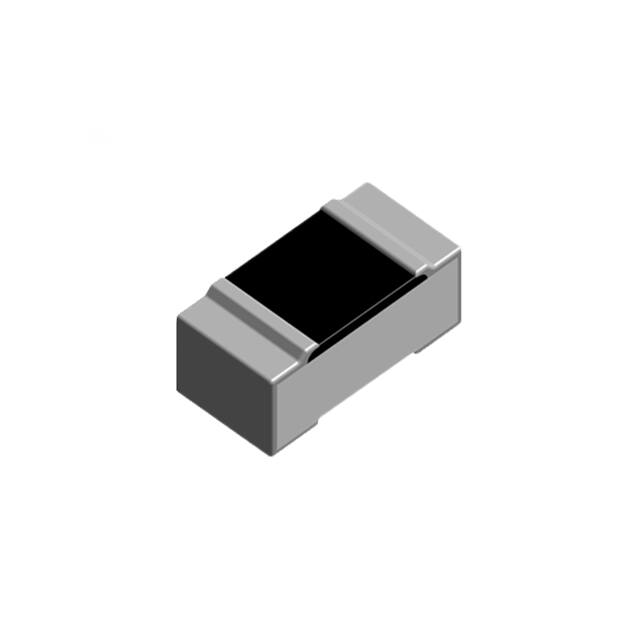

ERA-1AEB682C

Manufacturer :

Panasonic

Product Category :

Chip Resistor - Surface Mount

Terminal Finish :

Tin (Sn) - with Nickel (Ni) barrier

Number of Terminations :

2

Package / Case :

0201 (0603 Metric)

Composition :

Thin Film

Package Length :

0.6 mm

Operating Temperature :

-55°C ~ 155°C

Rated Temperature :

85 °C

Product :

Thin Film Resistors SMD

Rated Power Dissipation (P) :

0.05 W

Height :

0.23 mm

Type :

High Reliability Metal Film Chip Resistor

Mounting Style :

PCB Mount

Manufacturer :

Panasonic

Reference Standard :

AEC-Q200

Minimum Operating Temperature :

- 55 C

Surface Mount :

yes

Features :

-

Package Shape :

RECTANGULAR PACKAGE

Package Width :

0.3 mm

Height - Seated (Max) :

0.010" (0.26mm)

RoHS :

Details

Packing Method :

TAPE, PRESSED

Operating Temperature Range :

- 55 C to + 155 C

Working Voltage :

25 V

Packaging :

MouseReel

Terminal Shape :

WRAPAROUND

JESD-609 Code :

e3

Brand :

Panasonic

Package :

Digi-Reel?

Series :

ERA-1A

Construction :

Chip

Temperature Coefficient :

±25ppm/°C

Pbfree Code :

yes

Failure Rate :

-

Ratings :

-

Size / Dimension :

0.024" L x 0.012" W (0.60mm x 0.30mm)

Qualification :

AEC-Q200

Maximum Operating Temperature :

+ 155 C

Power Rating :

50 mW (1/20 W)

Product Status :

Active

Product Type :

Thin Film Resistors

Technology :

Thin Film

Resistor Type :

FIXED RESISTOR

Length :

0.6 mm

Size Code :

0201

Tolerance :

±0.1%

Resistance :

6.8 kOhms

Subcategory :

Resistors

Additional Feature :

STANDARD: IEC60115-8

Product Category :

Thin Film Resistors - SMD

Power (Watts) :

0.05W, 1/20W

Voltage Rating :

25 V

Width :

0.3 mm

Mounting Feature :

Surface Mount

Reach Compliance Code :

Compliant

Number of Terminals :

2

Supplier Device Package :

0201

Package Height :

0.23 mm

Termination Style :

SMD/SMT

Base Product Number :

ERA-1AE
