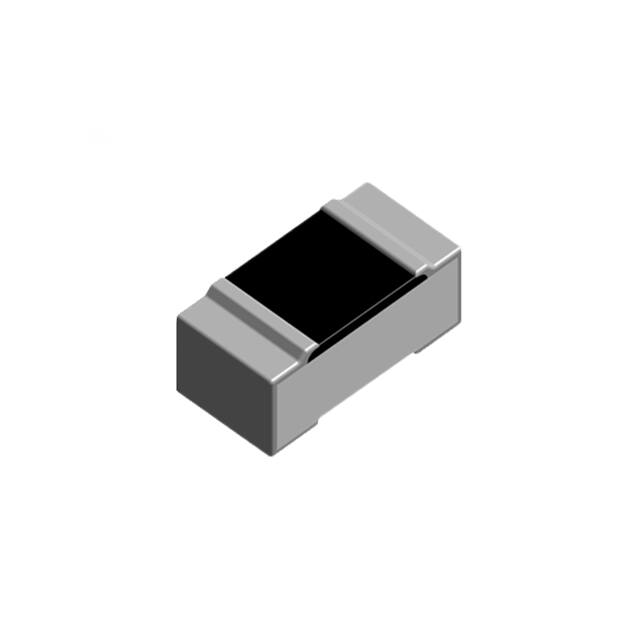

ERA-1AEB911C

Manufacturer :

Panasonic

Product Category :

Chip Resistor - Surface Mount

Operating Temperature Range :

- 55 C to + 155 C

Minimum Operating Temperature :

- 55 C

Size / Dimension :

0.024 L x 0.012 W (0.60mm x 0.30mm)

Qualification :

AEC-Q200

RoHS :

Details

Voltage Rating :

25 V

Ratings :

-

Power (Watts) :

0.05W, 1/20W

Product :

Thin Film Resistors SMD

Failure Rate :

-

Base Product Number :

ERA-1AE

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Power Rating :

50 mW

JESD-609 Code :

e3

Terminal Shape :

WRAPAROUND

Packing Method :

TAPE, PRESSED

Rated Power Dissipation (P) :

0.05 W

Reference Standard :

AEC-Q200

Lifecycle Status :

Production (Last Updated: 2 years ago)

Type :

High Reliability Metal Film Chip Resistor

Maximum Operating Temperature :

+ 155 C

Height :

0.23 mm

Subcategory :

Resistors

Length :

0.6 mm

Construction :

Chip

Height - Seated (Max) :

0.010 (0.26mm)

Mounting Style :

PCB Mount

Terminal Finish :

Tin (Sn) - with Nickel (Ni) barrier

Supplier Device Package :

0201

Size Code :

0201

Termination Style :

SMD/SMT

Pbfree Code :

yes

Product Type :

Thin Film Resistors

Technology :

Thin Film

Number of Terminals :

2

Package Length :

0.6 mm

Package Shape :

RECTANGULAR PACKAGE

Package Height :

0.23 mm

Package Width :

0.3 mm

Product Category :

Thin Film Resistors - SMD

Package / Case :

0201 (0603 Metric)

Temperature Coefficient :

25 PPM / C

Resistance :

910 Ω

Working Voltage :

25 V

Brand :

Panasonic

Width :

0.3 mm

Number of Terminations :

2

Composition :

Thin Film

Additional Feature :

STANDARD: IEC60115-8

Mounting Feature :

Surface Mount

Reach Compliance Code :

Compliant

Lead Free :

Lead Free

Features :

-

Operating Temperature :

-55°C ~ 155°C

Series :

ERA-xA

Packaging :

MouseReel

Tolerance :

0.1 %

Product Status :

Active

Surface Mount :

yes

Resistor Type :

FIXED RESISTOR

Manufacturer :

Panasonic

Rated Temperature :

85 °C
