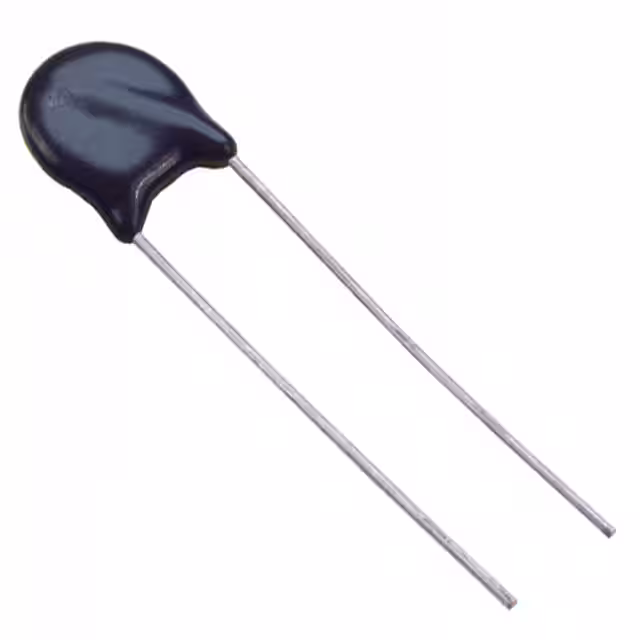

ERZ-V09D201CS

Manufacturer :

Panasonic

Product Category :

Series :

V

Varistor Voltage (Typ) :

200 V

Brand :

Panasonic

JESD-609 Code :

e3

Circuit RMS Voltage-Max :

130 V

Product Status :

Active

Varistor Voltage (Max) :

225 V

Varistor Voltage (Min) :

185 V

Reach Compliance Code :

Compliant

Rated Power Dissipation (P) :

0.4 W

Mounting Feature :

THROUGH HOLE MOUNT

Resistor Type :

VARISTOR

Tradename :

ZNR

Capacitance @ Frequency :

430 pF @ 1 kHz

Package Shape :

DISK PACKAGE

Termination Style :

Radial

Mounting Style :

PCB Mount

Clamping Voltage :

340 V

Energy :

35J

Operating Temperature :

-40°C ~ 85°C (TA)

Pbfree Code :

yes

Mounting Type :

Through Hole

Features :

-

Peak Surge Current :

3.5 kA

Capacitance :

430 pF

Factory Lead Time :

12 Weeks

Product :

MOV

Circuit DC Voltage-Max :

170 V

RoHS :

Details

Varistor Voltage :

200 V

Product Type :

Varistors

Lead Spacing :

5 mm

Package / Case :

Disc 10mm

Energy Absorbing Capacity-Max :

35 J

Terminal Finish :

Tin (Sn)

Terminal Placement :

Radial

Number of Circuits :

1

Product Category :

Varistors

HTS Code :

8533.40.40.00

Current - Surge :

3.5 kA

Manufacturer :

Panasonic

Subcategory :

Varistors

Maximum DC Volts :

170 V

Maximum AC Volts :

130 V

Terminal Shape :

Wire

Number of Terminals :

2

Surface Mount :

No

ECCN Code :

EAR99

Diameter :

9 mm
