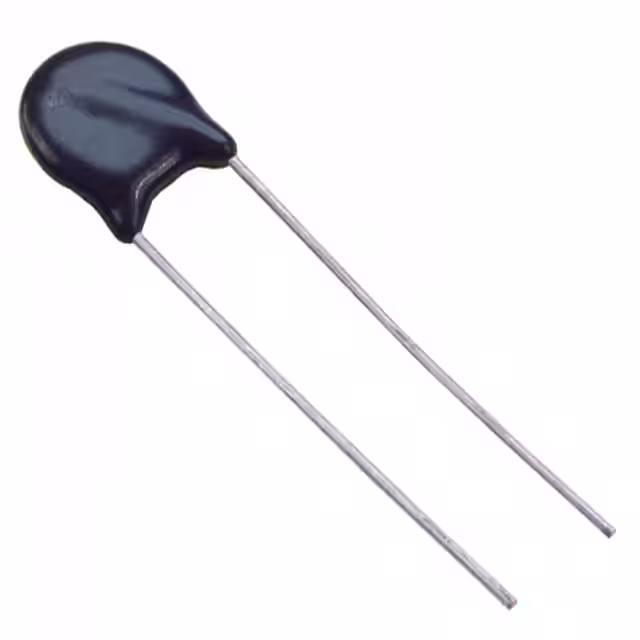

ERZ-V09D270

Manufacturer :

Panasonic

Product Category :

Max Surge Current :

1 kA

JESD-609 Code :

e3

Rated Power Dissipation (P) :

0.05 W

Maximum DC Volts :

22 V

Terminal Shape :

Wire

Terminal Placement :

Radial

Reach Compliance Code :

Compliant

Tradename :

ZNR

Termination :

Radial

Manufacturer :

Panasonic

Capacitance :

8 nF

Operating Temperature :

-40°C ~ 85°C (TA)

Clamping Current :

5 A

Number of Circuits :

1

Varistor Voltage (Min) :

24 V

Package Shape :

DISK PACKAGE

Rated Temperature :

85 °C

Number of Terminals :

2

Series :

V

Max Operating Temperature :

85 °C

Diameter :

9 mm

Brand :

Panasonic

Technology :

Metal Oxide Film

Product Type :

Varistors

Lead Spacing :

5 mm

Mounting Style :

PCB Mount

Product Status :

Active

Clamping Voltage :

53 V

Surface Mount :

No

Circuit RMS Voltage-Max :

17 V

Package :

Bulk

Min Operating Temperature :

-40 °C

Peak Surge Current :

1 kA

Termination Style :

Radial

Max Voltage Rating (AC) :

17 V

Product :

MOV

Circuit DC Voltage-Max :

22 V

Radiation Hardening :

No

Voltage Rating (AC) :

17 V

Lead Pitch :

5 mm

Mounting Feature :

THROUGH HOLE MOUNT

Package / Case :

Disc 10mm

Packing Method :

Bulk

Varistor Voltage (Max) :

30 V

Mounting Type :

Through Hole

Factory Lead Time :

12 Weeks

Voltage Rating (DC) :

22 V

Pbfree Code :

yes

Energy :

3.9J

Varistor Voltage :

27 V

Features :

-

Varistor Voltage (Typ) :

27 V

Maximum AC Volts :

17 V

Mount :

Through Hole

Current - Surge :

1 kA

Max Voltage Rating (DC) :

22 V

Resistor Type :

VARISTOR

RoHS :

Compliant

Terminal Finish :

Tin (Sn)

Product Category :

Varistors

Subcategory :

Varistors

Lead/Base Style :

Radial

Energy Absorbing Capacity-Max :

3.9 J

Capacitance @ Frequency :

8000 pF @ 1 kHz
