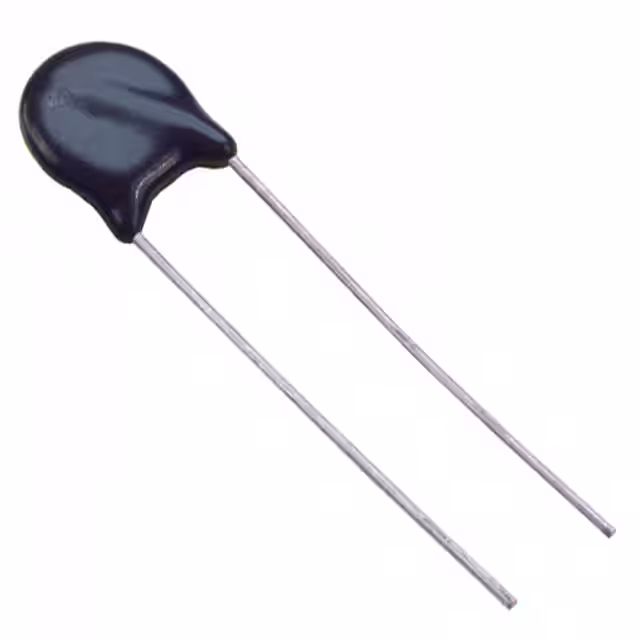

ERZ-V09D391

Manufacturer :

Panasonic

Product Category :

JESD-609 Code :

e3

ECCN Code :

EAR99

Mounting Feature :

THROUGH HOLE MOUNT

Varistor Voltage (Min) :

351 V

Product Status :

Active

Manufacturer :

Panasonic

Diameter :

9 mm

Terminal Finish :

Tin (Sn)

Current - Surge :

3.5 kA

Peak Surge Current :

3.5 kA

Circuit DC Voltage-Max :

320 V

Energy :

70J

Lead Spacing :

5 mm

Varistor Voltage (Typ) :

390 V

Varistor Voltage (Max) :

429 V

Package Shape :

DISK PACKAGE

Number of Terminals :

2

Package / Case :

Disc 10mm

Surface Mount :

No

HTS Code :

8533.40.40.00

Clamping Voltage :

650 V

Terminal Shape :

Wire

Rated Temperature :

85 °C

Operating Temperature :

-40°C ~ 85°C (TA)

Technology :

Metal Oxide Film

Maximum AC Volts :

250 V

Series :

V

Termination Style :

Radial

Product Category :

Varistors

Mounting Style :

PCB Mount

Factory Lead Time :

12 Weeks

Resistor Type :

VARISTOR

Packing Method :

Bulk

Tradename :

ZNR

RoHS :

Details

Energy Absorbing Capacity-Max :

70 J

Terminal Placement :

Radial

Maximum DC Volts :

320 V

Subcategory :

Varistors

Reach Compliance Code :

Compliant

Product Type :

Varistors

Minimum Operating Temperature :

- 40 C

Rated Power Dissipation (P) :

0.4 W

Brand :

Panasonic

Mounting Type :

Through Hole

Package :

Bulk

Capacitance :

300 pF

Pbfree Code :

yes

Capacitance @ Frequency :

300 pF @ 1 kHz

Surge Energy Rating :

70 J

Product :

MOV

Number of Circuits :

1

Varistor Voltage :

390 V

Maximum Operating Temperature :

+ 85 C

Circuit RMS Voltage-Max :

250 V

Features :

-
