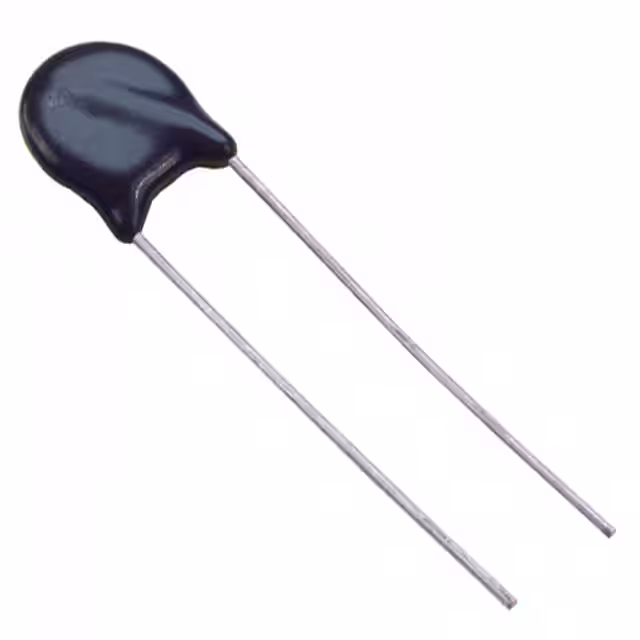

ERZ-V09V151CS

Manufacturer :

Panasonic

Product Category :

Terminal Placement :

Radial

Clamping Voltage :

250 V

Brand :

Panasonic

Capacitance @ Frequency :

1100 pF @ 1 kHz

Surface Mount :

No

Resistor Type :

VARISTOR

Maximum DC Volts :

125 V

Current - Surge :

3.5 kA

Varistor Voltage (Typ) :

150 V

Minimum Operating Temperature :

- 40 C

Energy :

25J

Series :

V

Surge Energy Rating :

25 J

Pbfree Code :

yes

Manufacturer :

Panasonic

Operating Temperature :

-40°C ~ 85°C (TA)

Terminal Finish :

Tin (Sn)

Varistor Voltage (Max) :

165 V

Maximum Operating Temperature :

+ 85 C

Maximum AC Volts :

95 V

Mounting Feature :

THROUGH HOLE MOUNT

JESD-609 Code :

e3

Package / Case :

Disc 10mm

Varistor Voltage :

150 V

Varistor Voltage (Min) :

135 V

Product Type :

Varistors

Terminal Shape :

Wire

Mounting Type :

Through Hole

Product :

MOV

Mounting Style :

PCB Mount

Product Status :

Active

Factory Lead Time :

12 Weeks

Peak Surge Current :

3.5 kA

Product Category :

Varistors

Subcategory :

Varistors

RoHS :

Details

Number of Terminals :

2

Energy Absorbing Capacity-Max :

25 J

Rated Power Dissipation (P) :

0.4 W

Circuit RMS Voltage-Max :

95 V

Diameter :

9 mm

Number of Circuits :

1

Features :

-

Termination Style :

Radial

Tradename :

ZNR

Lead Spacing :

5 mm

Capacitance :

1100 pF

ECCN Code :

EAR99

Circuit DC Voltage-Max :

125 V

HTS Code :

8533.40.40.00

Reach Compliance Code :

Compliant

Package Shape :

DISK PACKAGE
