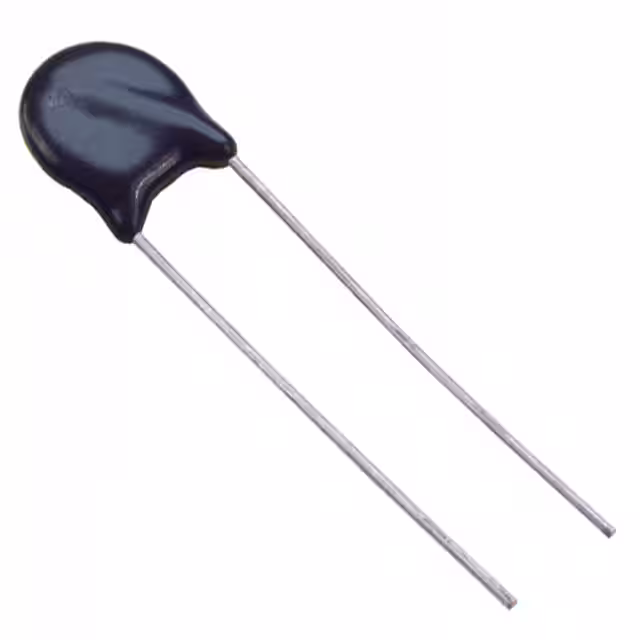

ERZ-VA9V331

Manufacturer :

Panasonic

Product Category :

Product :

MOV

Pbfree Code :

yes

Mounting Feature :

THROUGH HOLE MOUNT

Product Type :

Varistors

Brand :

Panasonic

Product Status :

Active

Subcategory :

Varistors

Series :

V

Lead/Base Style :

Radial

ECCN Code :

EAR99

Lifecycle Status :

Production (Last Updated: 2 years ago)

Max Voltage Rating (DC) :

270 V

Lead Spacing :

5 mm

Factory Lead Time :

12 Weeks

JESD-609 Code :

e3

Varistor Voltage :

330 V

Circuit RMS Voltage-Max :

210 V

Packing Method :

TR

Termination :

Radial

Varistor Voltage (Max) :

363 V

Reach Compliance Code :

Compliant

Number of Terminals :

2

Current - Surge :

3.5 kA

Energy :

58J

Termination Style :

Radial

Package :

Tape and Box (TB)

Package Shape :

DISK PACKAGE

Features :

-

Rated Power Dissipation (P) :

0.4 W

Lead Style :

Radial Leaded

Radiation Hardening :

No

Capacitance @ Frequency :

300 pF @ 1 kHz

RoHS :

Details

Capacitance :

300 pF

Product Category :

Varistors

Diameter :

9 mm

Tradename :

ZNR

Maximum AC Volts :

210 V

Terminal Placement :

Radial

Operating Temperature :

-40 to 85 °C

Energy Absorbing Capacity-Max :

58 J

Resistor Type :

VARISTOR

HTS Code :

8533.40.40.00

Max Surge Current :

3.5 kA

Varistor Voltage (Min) :

297 V

Number of Circuits :

1

Min Operating Temperature :

-40 °C

Surface Mount :

No

Mount :

Through Hole

Voltage Rating (AC) :

210 V

Peak Surge Current :

3.5 kA

Max Operating Temperature :

85 °C

Lead Pitch :

5 mm

Clamping Current :

25 A

Max Voltage Rating (AC) :

210 V

Package / Case :

Disc 10mm

Circuit DC Voltage-Max :

270 V

Manufacturer :

Panasonic

Mounting Type :

Through Hole

Clamping Voltage :

545 V

Mounting Style :

PCB Mount

Voltage Rating (DC) :

270 V

Maximum DC Volts :

270 V

Terminal Finish :

Tin (Sn)

Terminal Shape :

Wire

Varistor Voltage (Typ) :

330 V
