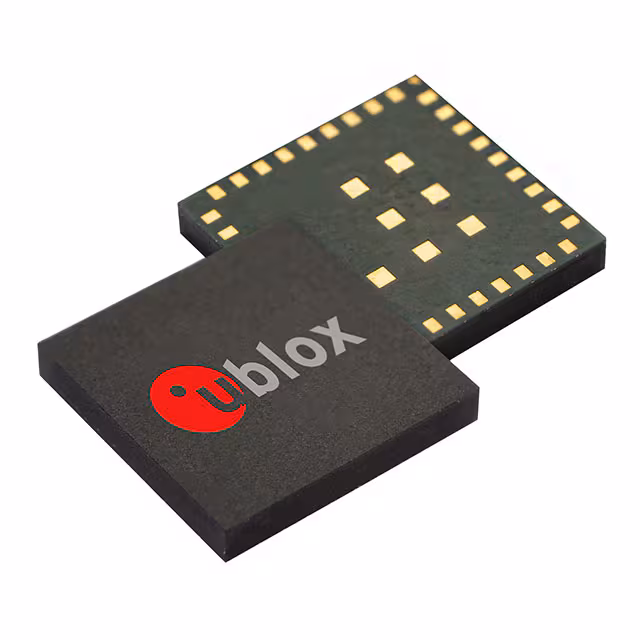

EVA-7M-0

Manufacturer :

u-blox

Product Category :

RF Transceiver Modules and Modems

Utilized IC / Part :

-

Reach Compliance Code :

Unknown

Memory Size :

-

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Surface Mount :

yes

Protocol :

GLONASS, GPS, GNSS

Mounting Style :

SMD/SMT

Series :

EVA-7M

Operating Temperature :

-30°C ~ 85°C (TA)

JESD-30 Code :

S-XXMA-B43

Interface Type :

SPI, UART, USB

Serial Interfaces :

I²C, SPI, UART, USB

Product Status :

Obsolete

Minimum Operating Temperature :

- 30 C

Package Shape :

Square

Number of Functions :

1

Data Rate :

9.6kBaud

Base Product Number :

EVA-7M

Seated Height-Max :

1.16 mm

Current - Receiving :

16.5mA

Number of Terminals :

43

Operating Supply Current :

21 mA

Brand :

u-blox

Package / Case :

43-SMD Module

Number of Channels :

56 Channel

Antenna Type :

Antenna Not Included

Sensitivity :

-160dBm

Product Category :

GNSS / GPS Modules

Voltage - Supply :

1.65V ~ 3.6V

Packaging :

Cut Tape

Product Type :

GPS Modules

Frequency :

1.575GHz

Current - Transmitting :

16.5mA

Operating Supply Voltage :

3.3 V

Subcategory :

Wireless and RF Modules

Length :

7 mm

Mounting Type :

Surface Mount

Telecom IC Type :

TELECOM CIRCUIT

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Maximum Operating Temperature :

+ 85 C

Temperature Grade :

COMMERCIAL EXTENDED

Terminal Form :

BUTT

RF Family/Standard :

Navigation

Terminal Position :

UNSPECIFIED

Width :

7 mm

Modulation :

-

Power - Output :

-
