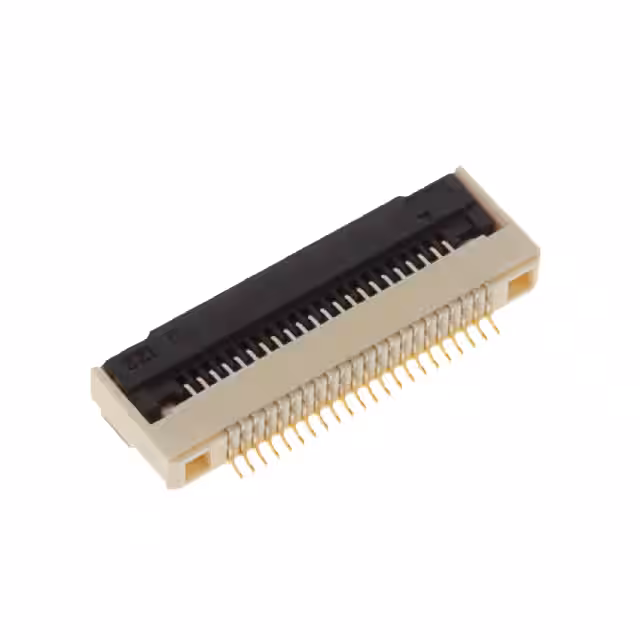

F305-1A7H1-21022-E100
Or copy the link below:
- Mfr.Part #
- F305-1A7H1-21022-E100
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- FLEX CONNECTOR, 0.50MM PITCH, HE
- Stock
- 398
- In Stock ：
- 398
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Cable End Type :
- Straight
- Number of Positions :
- 22
- Housing Material :
- Liquid Crystal Polymer (LCP), Halogen Free
- Moisture Sensitivity Level (MSL) :
- 2 (1 Year)
- Termination :
- Solder
- Series :
- Aurora F305
- Locking Feature :
- Flip Lock
- Packaging :
- Tape and Reel (TR)
- Operating Temperature :
- -40°C~105°C
- Voltage - Rated :
- 50V
- FFC, FCB Thickness :
- 0.30mm
- Current Rating (Amps) :
- 0.5A
- Housing Color :
- Natural
- Actuator Material :
- Polyamide (PA9T), Nylon 9T, Halogen Free
- Mounting Type :
- Surface Mount, Right Angle
- Pitch :
- 0.020 0.50mm
- Contact Finish :
- Gold
- Connector/Contact Type :
- Contacts, Bottom
- Height Above Board :
- 0.079 2.00mm
- Factory Lead Time :
- 9 Weeks
- Feature :
- Solder Retention, Zero Insertion Force (ZIF)
- Actuator Color :
- Black
- Mating Cycles :
- 30
- RoHS Status :
- RoHS Compliant
- Contact Material :
- Phosphor Bronze
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness :
- 3.00μin 0.076μm
- Flat Flex Type :
- FFC, FPC
- Datasheets
- F305-1A7H1-21022-E100
Aurora F305 Series FFC, FPC Contacts, Bottom Tape & Reel (TR) 0.020 0.50mm Solder 22 Positions Surface Mount, Right Angle Gold -40°C~105°C 0.5A
F305-1A7H1-21022-E100 Overview
This device is mounted in the Surface Mount, Right Angle position.It has been determined that a Tape & Reel (TR) case is necessary to package the product.There is a product in the Aurora F305 Series.There are a number of advantages to its Solder Retention, Zero Insertion Force (ZIF) feature.As a result, the device runs at -40°C~105°C Operating Temperature.
F305-1A7H1-21022-E100 Features
Aurora F305 series
F305-1A7H1-21022-E100 Applications
There are a lot of Amphenol ICC (FCI)
F305-1A7H1-21022-E100 FFC, FPC (Flat Flexible) Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
