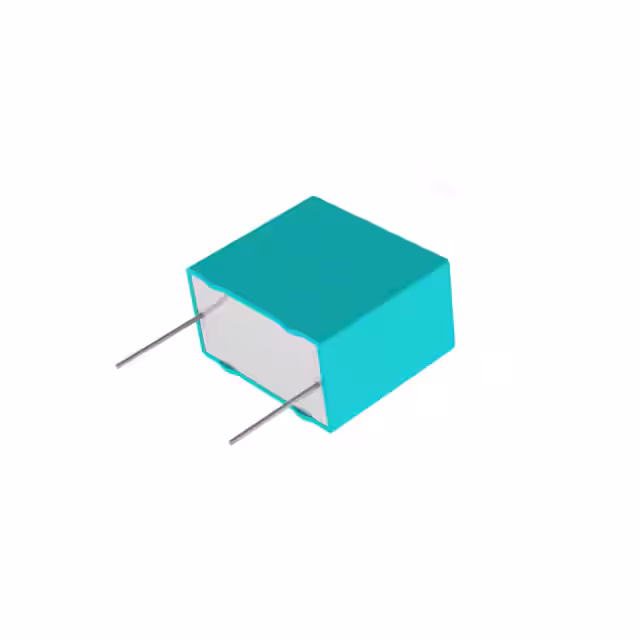

F612JF272K400R

Manufacturer :

KEMET

Product Category :

Film Capacitors

Ratings :

-

Negative Tolerance :

10%

Maximum Operating Temperature :

+ 105 C

Product Status :

Active

Positive Tolerance :

10%

Package Shape :

RECTANGULAR PACKAGE

Surface Mount :

No

Terminal Pitch :

5 mm

Lead Spacing :

0.197" (5.00mm)

Termination :

PC Pins

Series :

F612

Minimum Operating Temperature :

- 55 C

Temperature Coefficient :

400ppm/Cel ppm/°C

Base Product Number :

F612JF

Number of Pins :

2 Pin

Subcategory :

Capacitors

Rated (DC) Voltage (URdc) :

400 V

Product Type :

Film Capacitors

Applications :

GENERAL PURPOSE

Lead Style :

Straight

Product Category :

Film Capacitors

Packaging :

Ammo Pack

Manufacturer :

KEMET

Rated (AC) Voltage (URac) :

200 V

Capacitance :

2700 pF

Dielectric Material :

Polyester, Metallized - Stacked

Terminal Shape :

Wire

Capacitor Type :

FILM CAPACITOR

Diameter :

-

Type :

Stacked Metallized Polyester Capacitors

Operating Temperature :

-55°C ~ 105°C

Pbfree Code :

yes

JESD-609 Code :

e3

Size / Dimension :

0.283" L x 0.098" W (7.20mm x 2.50mm)

Tolerance :

±10%

Product :

Stacked Film Capacitors

Termination Style :

Radial

Height - Seated (Max) :

0.256" (6.50mm)

ECCN Code :

EAR99

Height :

6.5 mm

Features :

-

Brand :

KEMET

Packing Method :

Ammo Pack

Length :

7.2 mm

Mounting Feature :

THROUGH HOLE MOUNT

Terminal Finish :

Tin (Sn)

Lead Diameter :

0.6 mm

Size Code :

2810

Package :

Box

Reach Compliance Code :

Compliant

Additional Feature :

RATED AC VOLTAGE (V): 200

RoHS :

Details

Width :

6.5 mm

Number of Terminals :

2

Voltage Rating - DC :

400V

Voltage Rating - AC :

200V

Dielectric :

Polyester
