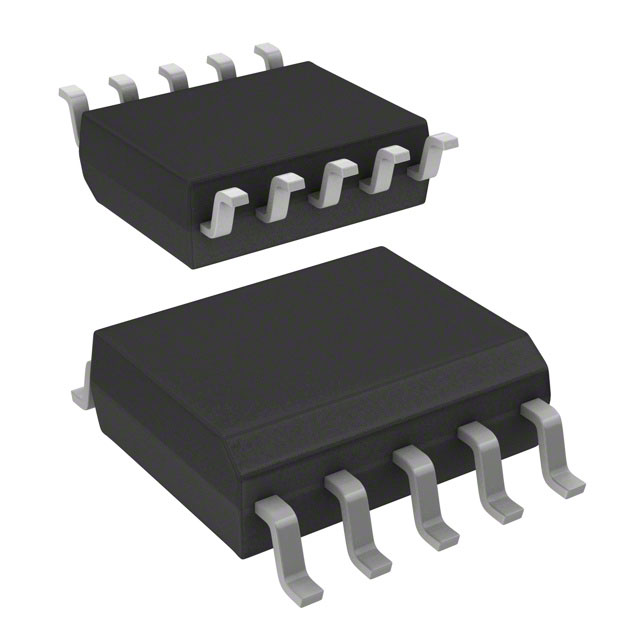

FAN604HMX

Manufacturer :

onsemi

Product Category :

AC DC Converters, Offline Switches

Package :

Tape and Reel (TR)

Temperature Grade :

Automotive

Surface Mount :

yes

Pbfree Code :

yes

Terminal Form :

Gull wing

Reach Compliance Code :

Compliant

Series :

-

Fault Protection :

Over Temperature, Over Voltage

Brand Name :

ON Semiconductor

Terminal Pitch :

1.27 mm

Topology :

Flyback

Terminal Position :

Dual

Number of Functions :

1

Width :

3.9 mm

JESD-609 Code :

e3

Supplier Device Package :

10-SOIC

Operating Temperature :

-40°C ~ 150°C (TJ)

Control Technique :

PULSE WIDTH MODULATION

Internal Switch(s) :

No

Product Status :

Last Time Buy

Control Features :

-

Length :

4.9 mm

Input Voltage-Nom :

15 V

Terminal Finish :

Tin (Sn)

Control Mode :

CURRENT-MODE

Number of Terminals :

10

Base Product Number :

FAN604

Analog IC - Other Type :

SWITCHING CONTROLLER

Duty Cycle :

-

Voltage - Start Up :

17.2 V

Mounting Type :

Surface Mount

Manufacturer :

ON Semiconductor

Voltage - Breakdown :

-

Output Isolation :

Isolated

Package / Case :

10-SOP (0.154, 3.90mm Width)

Voltage - Supply (Vcc/Vdd) :

6V ~ 25V

Seated Height-Max :

1.75 mm

Package Shape :

RECTANGULAR

Frequency - Switching :

18.5kHz ~ 130kHz

JESD-30 Code :

R-PDSO-G10
