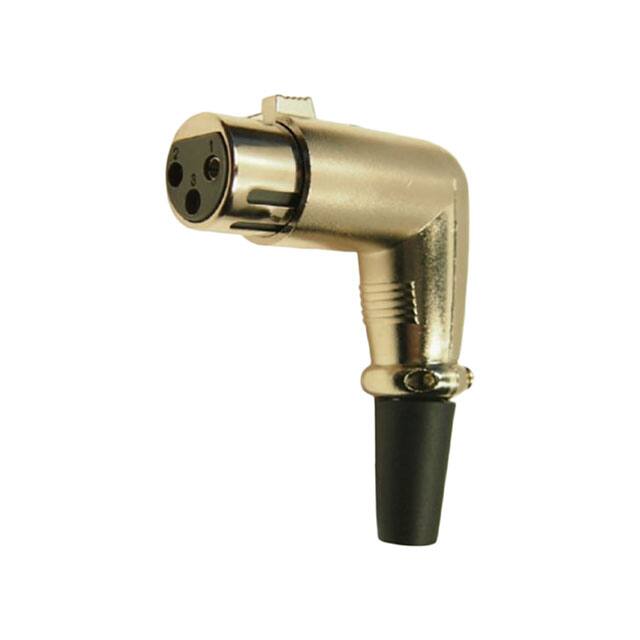

FC60953N

Manufacturer :

CLIFF

Product Category :

Circular Connector Assemblies

Fastening Type :

Latch Lock

Insert Material :

Polybutylene Terephthalate (PBT)

Backshell Material, Plating :

Zinc Alloy, Nickel

Applications :

Audio, Industrial

Mounting Type :

Free Hanging (In-Line), Right Angle

Current Rating (Amps) :

5A

Seal type :

Push

Product Status :

Active

Shell Finish :

Nickel

Number of Positions :

3

Termination :

Solder Cup

Shell Size, MIL :

-

Mounting Feature :

-

Color :

Silver

Contact Material :

Brass

Primary Material :

Metal

Material Flammability Rating :

-

Features :

Backshell, Strain Relief

Manufacturer part # :

FC60953N

Connector Type :

Plug, Female Sockets

Series :

-

Contact Finish - Mating :

Silver

Ingress Protection :

-

Content :

1pc(s)

Cable Opening :

0.307" (7.80mm)

Type :

FC60953N

Shielding :

Unshielded

Operating Temperature :

-30°C ~ 80°C

Voltage Rating :

250VAC

Shell Size - Insert :

XLR

Shell Material :

ZINC ALLOY

Orientation :

Keyed

Contact Finish Thickness - Mating :

196.9µin (5.00µm)

Package :

Box
