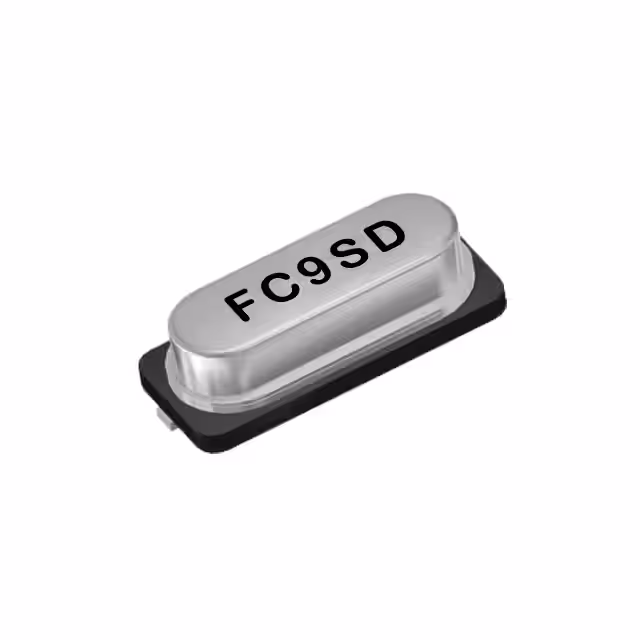

FC9SDBBKF4.055-T1

Manufacturer :

Fox Electronics

Product Category :

Crystals

Mounting Feature :

Surface Mount

RoHS Status :

RoHS Compliant

ECCN (US) :

EAR99

Surface Mount :

yes

Package Length :

11.3

Packaging :

Tape and Reel

Type :

Crystal

Reach Compliance Code :

Compliant

Minimum Operating Temperature (°C) :

-20

Frequency Stability (ppm) :

±50

Frequency Tolerance :

50 PPM

Maximum Operating Temperature (°C) :

70

Series Resistance :

150 Ω

Aging :

3 PPM/YEAR

PCB changed :

2

Series Resistance (Ohm) :

150

Package Width :

5(Max)

Drive Level :

100 µW

Series :

*

Product Status :

Active

Package Height :

3.2(Max)

Pin Count :

2

Crystal/Resonator Type :

PARALLEL - FUNDAMENTAL

Mode of Oscillation :

Fundamental

Load Capacitance (pF) :

16

Frequency Tolerance (ppm) :

±50

Frequency Aging (ppm/Year) :

±3

Physical Dimension :

11.7mm x 5.0mm x 3.2mm

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

Load Capacitance :

16 pF

Mounting :

Surface Mount

Factory Lead Time :

13 Weeks

Manufacturer :

Fox Electronics

Standard Frequency (MHz) :

4.055

Supplier Package :

SMD

Package :

Tape and Reel (TR)

Frequency Stability :

0.005%

JESD-609 Code :

e1
