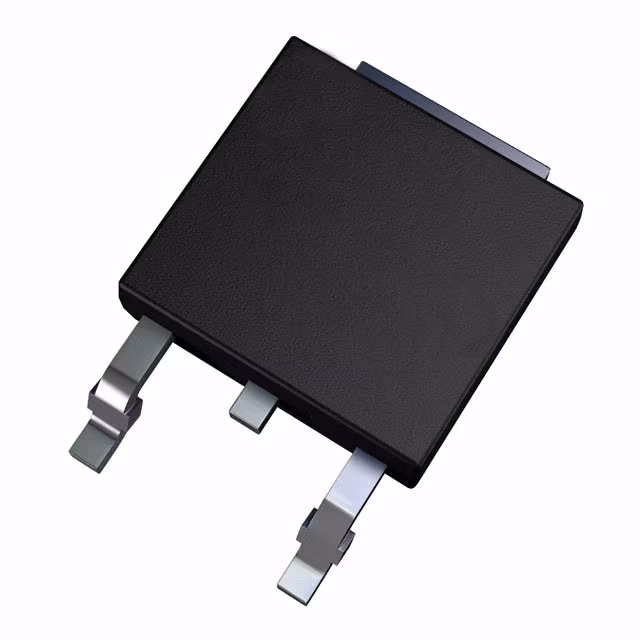

FDD3570

Manufacturer :

onsemi

Product Category :

Transistors - FETs, MOSFETs - Single

Package / Case :

TO-252-3, DPak (2 Leads + Tab), SC-63

Series :

PowerTrench®

Technology :

MOSFET (Metal Oxide)

Power Dissipation (Max) :

3.4W (Ta), 69W (Tc)

Current - Continuous Drain (Id) @ 25°C :

10A (Ta)

Product Status :

Obsolete

FET Type :

N-Channel

Package :

Bulk

Vgs (Max) :

±20V

Gate Charge (Qg) (Max) @ Vgs :

76 nC @ 10 V

FET Feature :

-

Mounting Type :

Surface Mount

Supplier Device Package :

TO-252, (D-Pak)

Input Capacitance (Ciss) (Max) @ Vds :

2800 pF @ 40 V

Drain to Source Voltage (Vdss) :

80 V

Drive Voltage (Max Rds On, Min Rds On) :

6V, 10V

Vgs(th) (Max) @ Id :

4V @ 250µA

Rds On (Max) @ Id, Vgs :

20mOhm @ 10A, 10V

Operating Temperature :

-55°C ~ 150°C (TJ)
