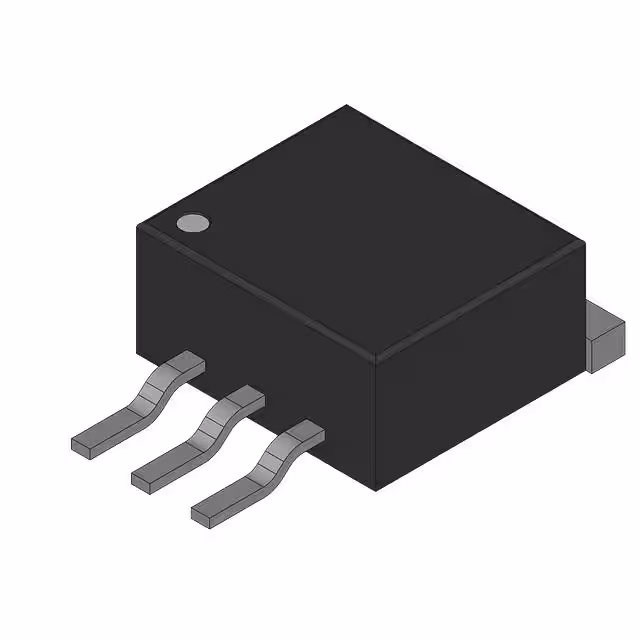

FDD6030BL
Or copy the link below:
- Mfr.Part #
- FDD6030BL
- Manufacturer
- Fairchild Semiconductor
- Package / Case
- Datasheet
- Download
- Description
- N-CHANNEL POWER MOSFET
- Stock
- 1,715
- In Stock ：
- 1,715
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Fairchild Semiconductor
- Product Category :
- Transistors - FETs, MOSFETs - Single
- Configuration :
- SINGLE WITH BUILT-IN DIODE
- JESD-30 Code :
- R-PSSO-G2
- Pbfree Code :
- yes
- JEDEC-95 Code :
- TO-252
- Reach Compliance Code :
- Unknown
- Polarity/Channel Type :
- N-Channel
- Case Connection :
- DRAIN
- Surface Mount :
- yes
- Number of Elements :
- 1
- Transistor Element Material :
- SILICON
- Package Shape :
- RECTANGULAR
- Terminal Form :
- Gull wing
- Terminal Finish :
- MATTE TIN
- Transistor Application :
- SWITCHING
- Operating Mode :
- ENHANCEMENT MODE
- JESD-609 Code :
- e3
- FET Technology :
- METAL-OXIDE SEMICONDUCTOR
- Avalanche Energy Rating (Eas) :
- 130 mJ
- Drain-source On Resistance-Max :
- 0.016 Ω
- Terminal Position :
- Single
- Manufacturer :
- Rochester Electronics LLC
- Qualification Status :
- COMMERCIAL
- Pulsed Drain Current-Max (IDM) :
- 100 A
- Peak Reflow Temperature (Cel) :
- 260
- Pin Count :
- 3
- Number of Terminals :
- 2
- DS Breakdown Voltage-Min :
- 30 V
- Datasheets
- FDD6030BL
FDD6030BL Overview
When a voltage exceeds breakdown voltage of a MOSFET, breakdown phenomena occurs and current flows. It's called “Avalanche break down”, and the energy applied to the MOSFET is called avalanche energy, and the avalanche energy rating (Eas) is 130 mJ.IDM is the maximum rated peak drain current for a power MOSFET, and its maximal pulsed drain current is 100 A.Single MOSFETs transistor is recommended that the DS breakdown voltage be kept above 30 V in order to maintain normal operation.
FDD6030BL Features
the avalanche energy rating (Eas) is 130 mJ
based on its rated peak drain current 100 A.
FDD6030BL Applications
There are a lot of ON Semiconductor
FDD6030BL applications of single MOSFETs transistors.
- LCD/LED TV
- Consumer Appliances
- Lighting
- Uninterruptible Power Supply
- AC-DC Power Supply
- Synchronous Rectification for ATX 1 Server I Telecom PSU
- Motor drives and Uninterruptible Power Supplies
- Micro Solar Inverter
- DC/DC converters
- Power Tools
