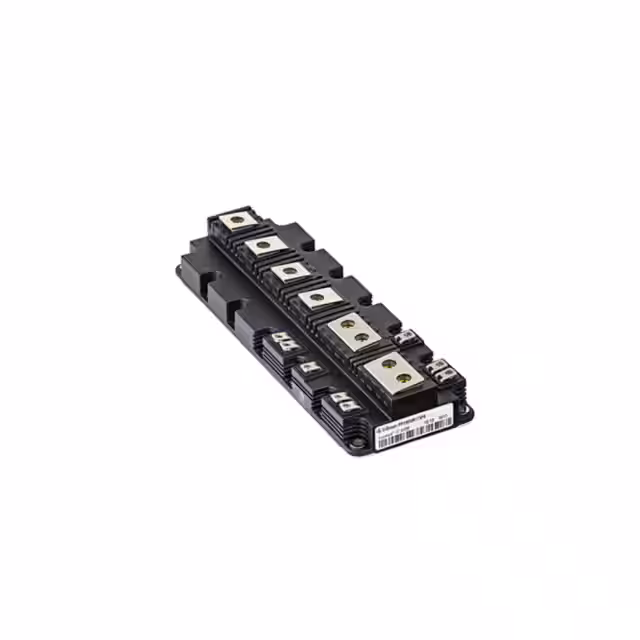

FF1500R17IP5PBPSA1
Or copy the link below:
- Mfr.Part #
- FF1500R17IP5PBPSA1
- Manufacturer
- Infineon Technologies
- Package / Case
- Module
- Datasheet
- Download
- Description
- IGBT MOD 1700V 1500A AGPRIME3+-5
- Stock
- 3
- In Stock ：
- 3
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Infineon Technologies
- Product Category :
- Transistors - IGBTs - Modules
- Operating Temperature :
- -40°C~175°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Power - Max :
- 1500W
- Mounting Type :
- Chassis Mount
- Input :
- Standard
- Configuration :
- Half Bridge
- RoHS Status :
- ROHS3 Compliant
- NTC Thermistor :
- yes
- Voltage - Collector Emitter Breakdown (Max) :
- 1700V
- Package / Case :
- Module
- Current - Collector Cutoff (Max) :
- 5mA
- Series :
- PrimePACK™3+
- Vce(on) (Max) @ Vge, Ic :
- 2.2V @ 15V, 1.5kA
- IGBT Type :
- Trench Field Stop
- Current - Collector (Ic) (Max) :
- 1500A
- Datasheets
- FF1500R17IP5PBPSA1
FF1500R17IP5PBPSA1 datasheet pdf and Transistors - IGBTs - Modules product details from Infineon Technologies stock available at
FF1500R17IP5PBPSA1 Description
FF1500R17IP5PBPSA1 is a 1700v IGBT. The IGBT FF1500R17IP5PBPSA1 can be applied in high-power converters, motor drives, traction drives, and wind turbines due to the following features. The Operating and Storage Temperature Range is between -40 and 175℃. And the transistor FF1500R17IP5PBPSA1 is in the Tray package with 1500kW power dissipation.
FF1500R17IP5PBPSA1 Features
Extended operating temperature Tvj op
High current density
Low switching losses
Low VcEsat
Tvj op= 175°C
High creepage and clearance distances
High power and thermal cycling capability
High power density
Pre-applied Thermal Interface Material
FF1500R17IP5PBPSA1 Applications
High power converters
Motor drives
Traction drives
Wind turbines
