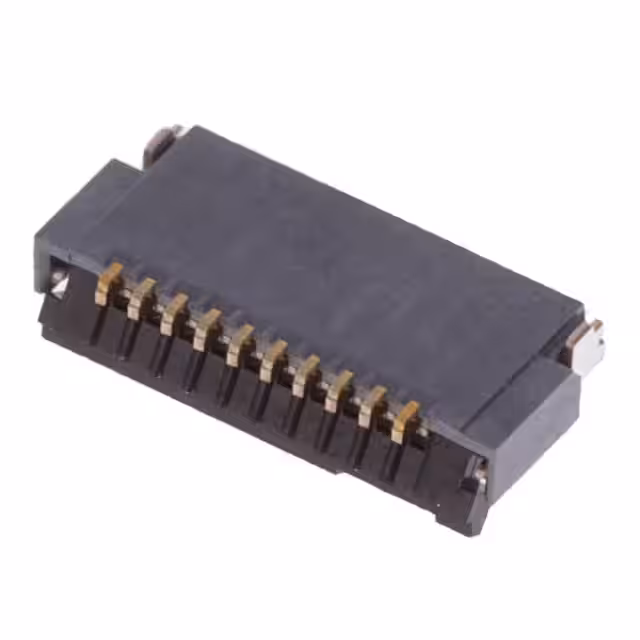

FH34D-8S-0.5SH(50)
Or copy the link below:
- Mfr.Part #
- FH34D-8S-0.5SH(50)
- Manufacturer
- Hirose
- Package / Case
- Datasheet
- Download
- Description
- CONN FFC/FPC 0.5MM R/A SMD 8POS
- Stock
- 3,544
- In Stock ：
- 3,544
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Hirose
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Contact Location :
- Top Contact
- Number of Positions :
- 8
- Voltage Rating :
- 50V
- Housing Material :
- Liquid Crystal Polymer (LCP)
- Mating Cycles :
- 20
- Locking Feature :
- Flip Lock, Backlock
- Material Flammability Rating :
- UL94 V-0
- Minimum Operating Temperature :
- - 55 C
- Package :
- Digi-Reel?
- Actuator Material :
- Liquid Crystal Polymer (LCP)
- Actuator Color :
- Black
- Flat Flex Type :
- FFC, FPC
- Features :
- Solder Retention, Zero Insertion Force (ZIF)
- Contact Finish Thickness :
- 1.25µin (0.03µm)
- Product Type :
- FFC and FPC Connectors
- Manufacturer :
- Hirose Electric
- Current Rating (Amps) :
- 0.5A
- Flammability Rating :
- UL 94 V-0
- RoHS :
- Details
- Brand :
- Hirose Connector
- Contact Finish :
- Gold
- Cable End Type :
- Notched
- Pitch :
- 0.020" (0.50mm)
- Accessory Type :
- -
- Housing Color :
- Gray
- Product Status :
- Active
- Current Rating :
- 500 mA
- Product Category :
- FFC and FPC Connectors
- Connector/Contact Type :
- Contacts, Top and Bottom
- Subcategory :
- FFC and FPC Connectors
- FFC, FCB Thickness :
- 0.30mm
- Contact Plating :
- Gold Plated Contacts
- Contact Material :
- Phosphor Bronze
- Gender :
- Receptacle
- Product :
- Receptacles
- Termination Style :
- SMD/SMT
- Height Above Board :
- 0.039" (1.00mm)
- Operating Temperature :
- -55°C ~ 105°C
- Termination :
- Solder
- Maximum Operating Temperature :
- + 105 C
- Mounting Angle :
- RIGHT ANGLE
- Mounting Style :
- SMD/SMT
- Series :
- FH34
- Mounting Type :
- Surface Mount, Right Angle
- Datasheets
- FH34D-8S-0.5SH(50)
FH34 Series FFC, FPC Contacts, Top and Bottom 0.020" (0.50mm) Solder 8 Positions Surface Mount, Right Angle Gold -55°C ~ 105°C 0.5A
FH34D-8S-0.5SH(50) Overview
There is a mounting type of Surface Mount, Right Angle for this device.This product is part of the FH34 Series.In this case, the device operates at -55°C ~ 105°C Operating Temperature.
FH34D-8S-0.5SH(50) Features
FH34 series
FH34D-8S-0.5SH(50) Applications
There are a lot of Hirose Electric Co Ltd
FH34D-8S-0.5SH(50) FFC, FPC (Flat Flexible) Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
