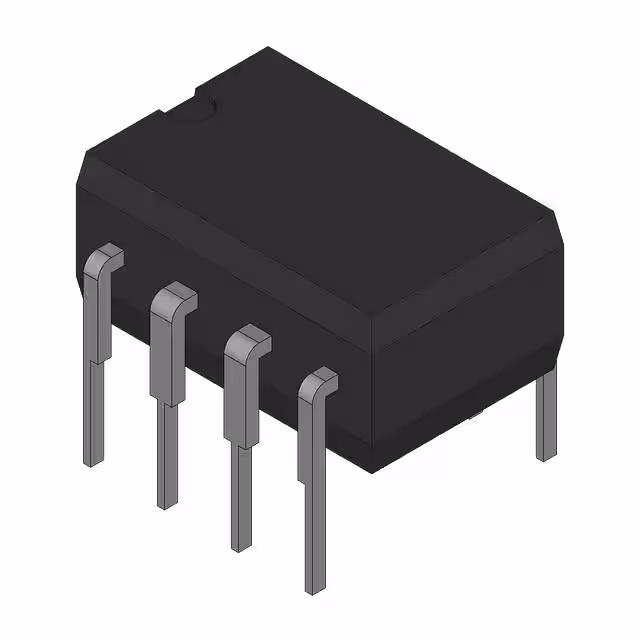

FM24C256N

Manufacturer :

Fairchild Semiconductor

Product Category :

Memory

Product Status :

Active

Memory Format :

EEPROM

Number of Words :

32768 words

Terminal Position :

Dual

Terminal Finish :

TIN LEAD

Package / Case :

8-DIP (0.300, 7.62mm)

Memory Organization :

32K x 8

Supply Voltage-Max (Vsup) :

5.5 V

Manufacturer :

Rochester Electronics LLC

Supplier Device Package :

8-DIP

Memory Type :

Non-Volatile

Series :

-

Write Cycle Time-Max (tWC) :

6 ms

Number of Terminals :

8

Reach Compliance Code :

Unknown

Package :

Bulk

Base Product Number :

FM24C256

Memory Interface :

I²C

Pbfree Code :

No

Seated Height-Max :

5.08 mm

Number of Functions :

1

Memory Size :

256Kbit

Mounting Type :

Through Hole

Technology :

EEPROM

Length :

9.817 mm

Serial Bus Type :

I2C

Terminal Pitch :

2.54 mm

Memory IC Type :

EEPROM

Qualification Status :

COMMERCIAL

Organization :

32KX8

Additional Feature :

40 YEARS DATA RETENTION

JESD-30 Code :

R-PDIP-T8

Memory Density :

262144 bit

Write Cycle Time - Word, Page :

6ms

Parallel/Serial :

Serial

Clock Frequency :

100 kHz

Pin Count :

8

JESD-609 Code :

e0

Supply Voltage-Min (Vsup) :

4.5 V

Width :

7.62 mm

Memory Width :

8

Access Time :

3.5 μs

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Temperature Grade :

COMMERCIAL

Package Shape :

RECTANGULAR

Terminal Form :

THROUGH-HOLE

Operating Mode :

SYNCHRONOUS

Operating Temperature :

0°C ~ 70°C (TA)

Surface Mount :

No

Voltage - Supply :

4.5V ~ 5.5V
