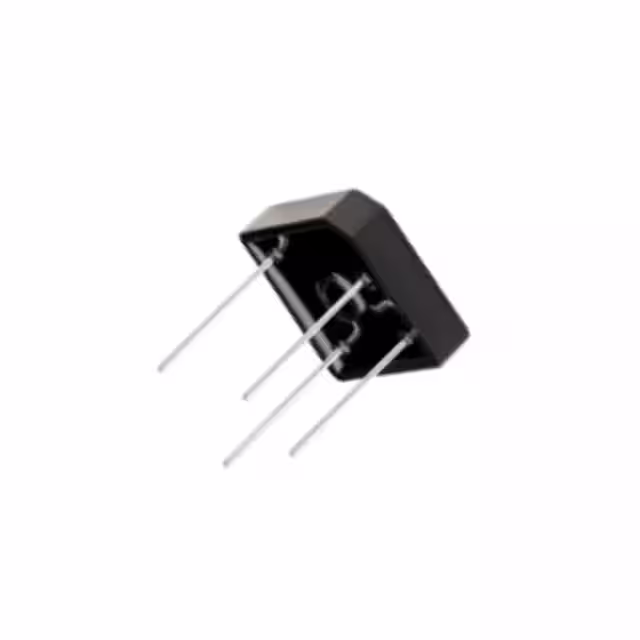

FMD2S

Manufacturer :

Rectron USA

Product Category :

Diodes - Bridge Rectifiers

Package :

Tape and Reel (TR)

Voltage - Peak Reverse (Max) :

100 V

Series :

-

Number of Elements :

4

ECCN Code :

EAR99

Terminal Position :

Dual

JESD-609 Code :

e3

Current - Reverse Leakage @ Vr :

10 µA @ 100 V

Tolerance :

Recovery Time - 150 ns

Terminal Finish :

Matte Tin (Sn)

Qualification Status :

Not Qualified

Number of Terminals :

4

Rep Pk Reverse Voltage-Max :

100 V

Pbfree Code :

yes

Packaging :

Case - MD-S

Diode Type :

Single Phase

Subcategory :

Bridge Rectifier Diodes

Non-rep Pk Forward Current-Max :

30 A

Voltage :

Reverse Voltage Vr - 100V

Product Status :

Active

Reverse Recovery Time-Max :

0.15 μs

Pin Count :

4

Package / Case :

4-SMD, Gull Wing

Supplier Device Package :

MD-S

Package Shape :

RECTANGULAR

Mounting Type :

Surface Mount

Current - Average Rectified (Io) :

500 mA

Peak Reflow Temperature (Cel) :

265

Voltage - Forward (Vf) (Max) @ If :

1.3 V @ 400 mA

JESD-30 Code :

R-PDSO-G4

Operating Temperature :

-55°C ~ 150°C (TJ)

Configuration :

BRIDGE, 4 ELEMENTS

Surface Mount :

yes

Terminal Form :

Gull wing

Breakdown Voltage-Min :

100 V

Reach Compliance Code :

not_compliant

RoHS :

Y

Diode Element Material :

SILICON

HTS Code :

8541.10.00.70

Output Current-Max :

0.5 A

Manufacturer :

Rectron

Number of Phases :

1
