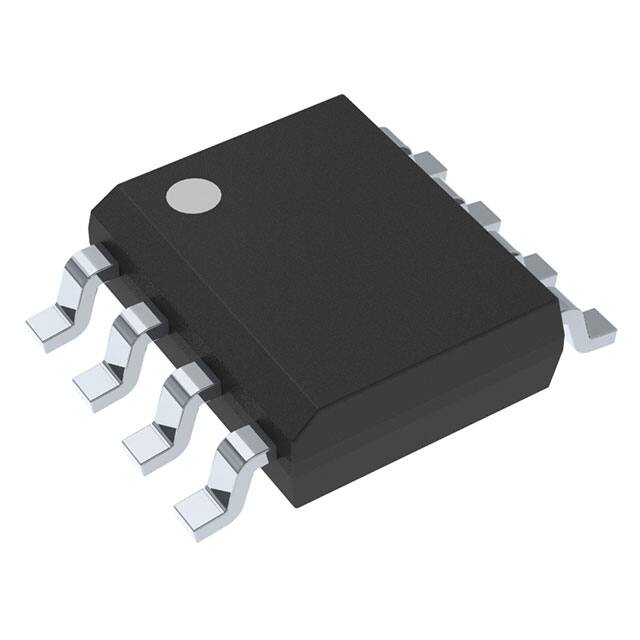

FOD8802A

Manufacturer :

onsemi

Product Category :

Optoisolators - Transistor, Photovoltaic Output

Rise / Fall Time (Typ) :

6μs, 7μs

Packaging :

Tube

Vce Saturation (Max) :

400mV

Rise Time :

6 us

Voltage - Isolation :

2500Vrms

Product Category :

Transistor Output Optocouplers

RoHS :

Details

Product Type :

Transistor Output Optocouplers

Turn On / Turn Off Time (Typ) :

6µs, 6µs

Input Type :

DC

Series :

OptoHit?

Product Status :

Active

Package / Case :

8-SOIC (0.154", 3.90mm Width)

Maximum Operating Temperature :

+ 110 C

Number of Channels :

2

Number of Pins :

8

Supplier Device Package :

8-SOIC

Current - Output / Channel :

30mA

Voltage - Output (Max) :

75V

Current Transfer Ratio (Max) :

150% @ 1mA

Current - DC Forward (If) (Max) :

20 mA

Minimum Operating Temperature :

- 40 C

Output Device :

Phototransistor

Package Type :

SOIC

Subcategory :

Optocouplers

Current Transfer Ratio :

80 %

Vf - Forward Voltage :

1.8 V

Isolation Voltage :

2500 Vrms

Operating Temperature :

-40°C ~ 125°C

Manufacturer :

onsemi

Output Type :

Transistor

Mounting Style :

SMD/SMT

Package :

Tube

Mounting Type :

Surface Mount

Voltage - Forward (Vf) (Typ) :

1.35V

Brand :

onsemi

Current Transfer Ratio (Min) :

65% @ 1mA
