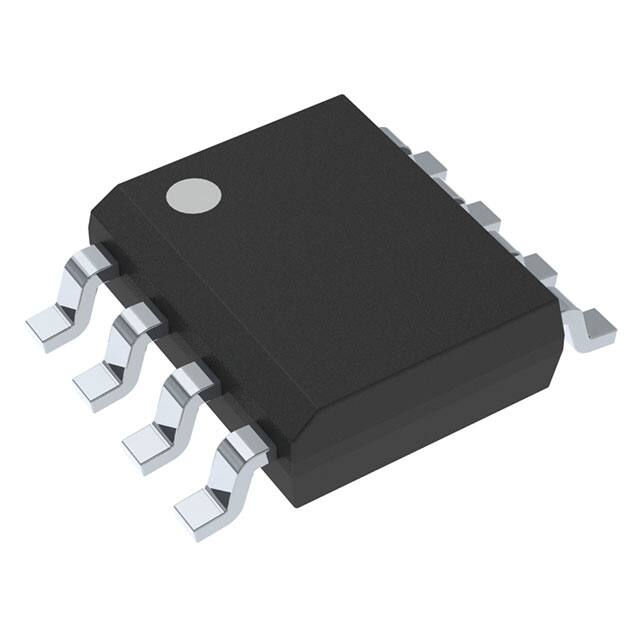

FOD8802C

Manufacturer :

onsemi

Product Category :

Optoisolators - Transistor, Photovoltaic Output

Packaging :

Tube

Voltage - Output (Max) :

75V

Package :

Tube

Vf - Forward Voltage :

1.8 V

Rise Time :

6 us

Current Transfer Ratio (Min) :

140% @ 1mA

Supplier Device Package :

8-SOIC

Current - DC Forward (If) (Max) :

20 mA

Mounting Style :

SMD/SMT

Product Status :

Active

Subcategory :

Optocouplers

Output Type :

Transistor

Isolation Voltage :

2500 Vrms

Vce Saturation (Max) :

400mV

Turn On / Turn Off Time (Typ) :

6µs, 6µs

Package / Case :

8-SOIC (0.154", 3.90mm Width)

Current Transfer Ratio (Max) :

380% @ 1mA

Current Transfer Ratio :

200 %

Voltage - Isolation :

2500Vrms

Number of Pins :

8

Product Category :

Transistor Output Optocouplers

Voltage - Forward (Vf) (Typ) :

1.35V

Package Type :

SOIC

Number of Channels :

2

RoHS :

N

Manufacturer :

onsemi

Rise / Fall Time (Typ) :

6μs, 7μs

Series :

OptoHit?

Input Type :

DC

Maximum Operating Temperature :

+ 110 C

Current - Output / Channel :

30mA

Mounting Type :

Surface Mount

Brand :

onsemi

Minimum Operating Temperature :

- 40 C

Product Type :

Transistor Output Optocouplers

Output Device :

Phototransistor

Operating Temperature :

-40°C ~ 125°C
