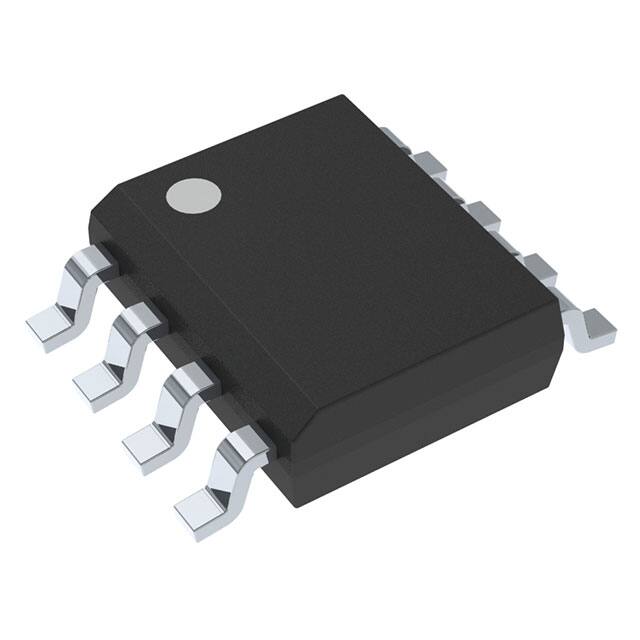

FOD8802DR2

Manufacturer :

onsemi

Product Category :

Optoisolators - Transistor, Photovoltaic Output

Maximum Operating Temperature :

+ 110 C

Input Type :

DC

Product Status :

Active

Operating Temperature :

-40°C ~ 125°C

Isolation Voltage :

2500 Vrms

Voltage - Isolation :

2500Vrms

Current Transfer Ratio :

100 %

Current - Output / Channel :

30mA

Current Transfer Ratio (Max) :

380% @ 1mA

Subcategory :

Optocouplers

Product Type :

Transistor Output Optocouplers

Current - DC Forward (If) (Max) :

20 mA

Voltage - Forward (Vf) (Typ) :

1.35V

Rise Time :

6 us

Current Transfer Ratio (Min) :

70% @ 1mA

Voltage - Output (Max) :

75V

Brand :

onsemi

Product Category :

Transistor Output Optocouplers

Vce Saturation (Max) :

400mV

Vf - Forward Voltage :

1.8 V

Supplier Device Package :

8-SOIC

Manufacturer :

onsemi

Turn On / Turn Off Time (Typ) :

6µs, 6µs

Series :

OptoHit?

Rise / Fall Time (Typ) :

6μs, 7μs

Number of Pins :

8

Minimum Operating Temperature :

- 40 C

Mounting Type :

Surface Mount

Number of Channels :

2

Mounting Style :

SMD/SMT

Output Device :

Transistor

Package :

Digi-Reel?

Output Type :

Transistor

Package Type :

SOIC

Package / Case :

8-SOIC (0.154", 3.90mm Width)
